638258-6 | AMP

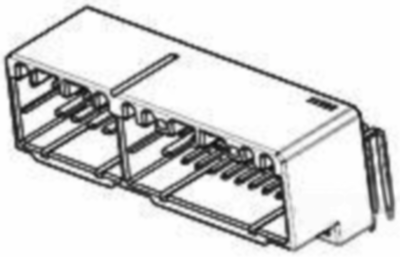

Socket, unequipped, 54 pole, angled, 2 rows, gray, 638258-6
Order No.: 36P1409
EAN: 4099889894615
MPN:
638258-6
Unit Price (€ / pc.)
16.7790 € *
Available in 5 Days: 101 pcs. - if ordered today
Total Price:
16.78 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7790 €
10 pcs.
15.5771 €
25 pcs.
14.5418 €
50 pcs.
13.2209 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 638258-6, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Strain relief: no, Number of positions: 54, Number of rows: 2, Body material: PBT GF, Primary product color: gray, Mating tab width: 1 mm, 1.8 mm, Terminal position assurance: no, Polarized, Height: 18.5 mm, Length: 95.8 mm, Width: 25.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: package, Packaging quantity: 20, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| contact surface | tin-plated | |
| Version | angled | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | gray | |
| Pin number | 54 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
