638207-6 | AMP

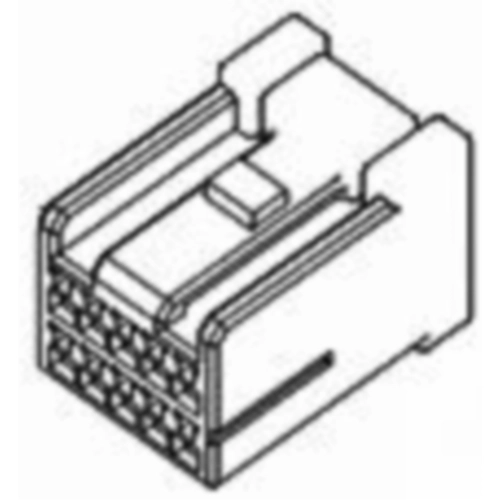

Socket, unequipped, 10 pole, straight, 2 rows, gray, 638207-6

Order No.: 36P1404
EAN: 4099889894585
MPN:
638207-6
Series: Multilock
638207-6 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2,056.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1600 pcs.
1.2852 €

Socket housing, 638207-6, AMP

Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 10, Number of rows: 2, Body material: PBT GF, Primary product color: gray, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.5 mm, Row-to-row spacing: 5.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: package, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Colour gray
Type of locking Yes
Grid 2.5 mm
Pin number 10 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Rated voltage 12 V
Number of rows 2
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
