6-968973-1 | AMP

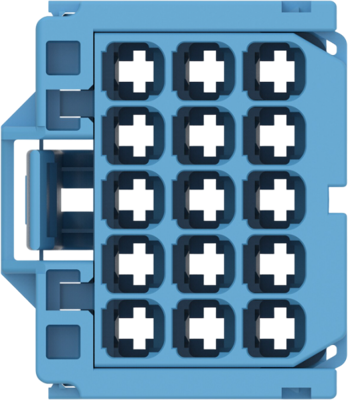

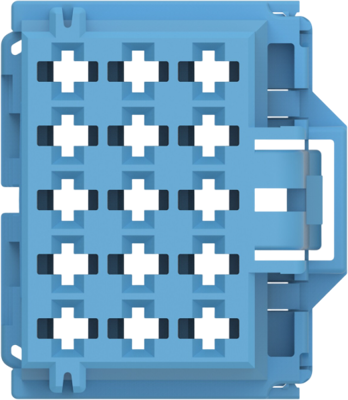

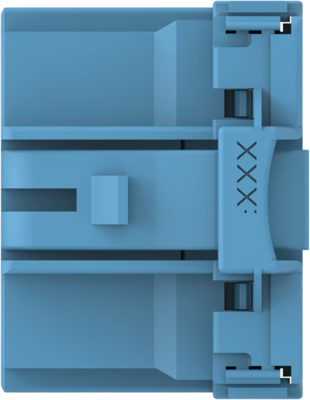

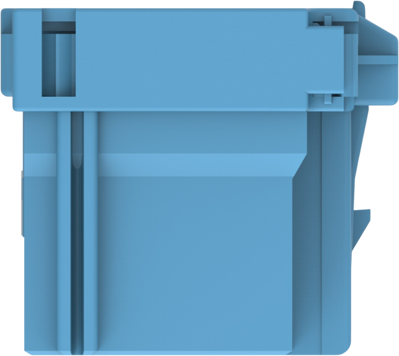

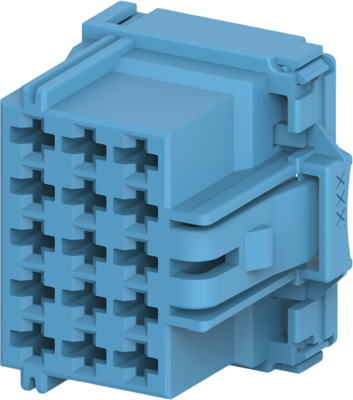

Socket, unequipped, 15 pole, straight, 3 rows, blue, 6-968973-1
Unit Price (€ / pc.)
1.9397 € *
Available in 5 Days: 435 pcs. - if ordered today
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.7612 €
50 pcs.
1.5946 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 6-968973-1, AMP
Row-to-row spacing: 5.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 15, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 28 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: blue, Mating tab width: 2.8 mm, Terminal position assurance: yes, Centerline (pitch): 5 mm, Height: 24 mm, Length: 31 mm, Width: 31 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: carton, Packaging quantity: 1200, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 15 pole | |
| Grid | 5 mm | |
| Colour | blue | |
| Version | straight | |
| Connection | crimp connection | |
| Rated voltage | 28 V | |
| Number of rows | 3 | |
| contact surface | tin-plated | |
| Additional parts | unequipped | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
