6-1419166-2 | AMP

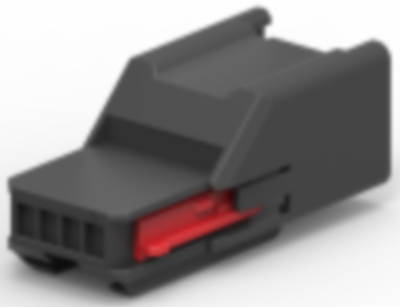

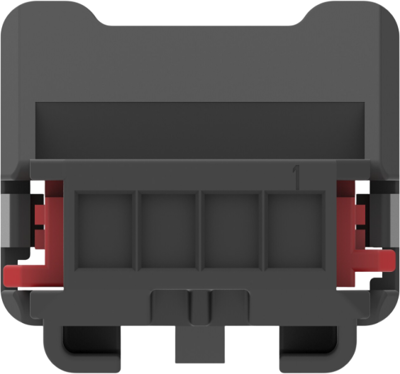

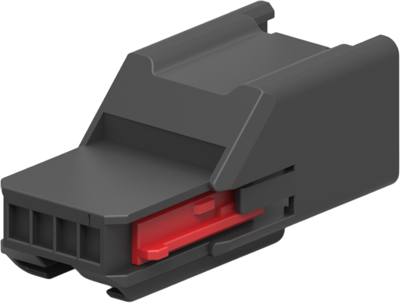

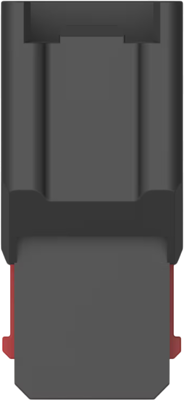

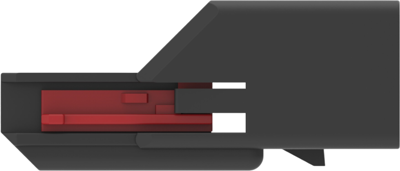

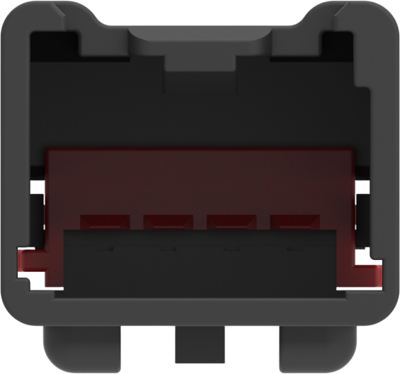

Plug, unequipped, 4 pole, straight, 1 row, black, 6-1419166-2
Order No.: 35P9468
EAN: 4099889889833
MPN:
6-1419166-2
Unit Price (€ / pc.)
1.5708 € *
Standard delivery time from the manufacturer is: 29 Weeks
Plug housing, 6-1419166-2, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 4, Number of rows: 1, Body material: PA GF, Primary product color: black, Connector code: B, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 34.95 mm, Packaging method: package, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | plug | |
| Rated voltage | 12 V | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 4 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
