5-1419168-8 | AMP

Socket, unequipped, 16 pole, straight, 2 rows, black, 5-1419168-8

Order No.: 35P9452
EAN: 4099889889765
MPN:
5-1419168-8
5-1419168-8 AMP Automotive Power Connectors Image 1

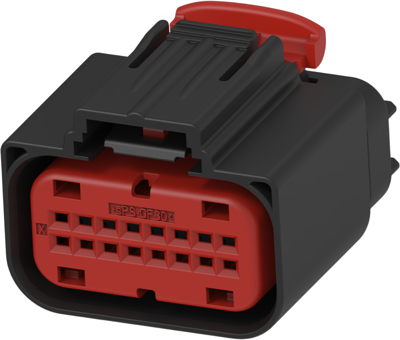

5-1419168-8 AMP Automotive Power Connectors Image 2

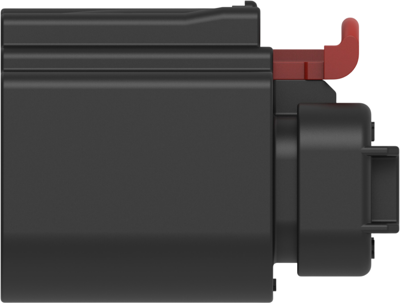

5-1419168-8 AMP Automotive Power Connectors Image 3

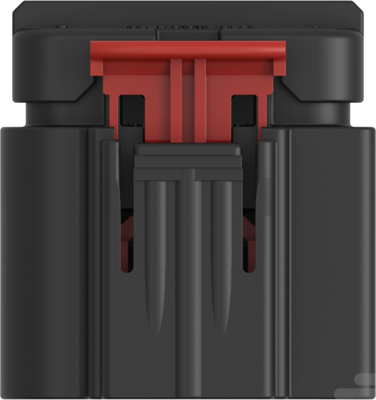

5-1419168-8 AMP Automotive Power Connectors Image 4

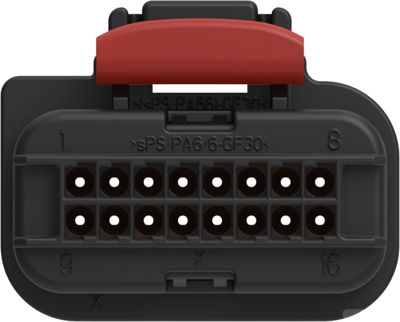

5-1419168-8 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
4.7957 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
11,509.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
2400 pcs.
4.7957 €

Socket housing, 5-1419168-8, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 16, Number of rows: 2, Body material: PA GF, Primary product color: black, Connector code: A, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Degree of protection: IP67, Packaging method: package, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 250 V
Pin number 16 pole
Grid 2.54 mm
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin MX
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
