4-967628-1 | AMP

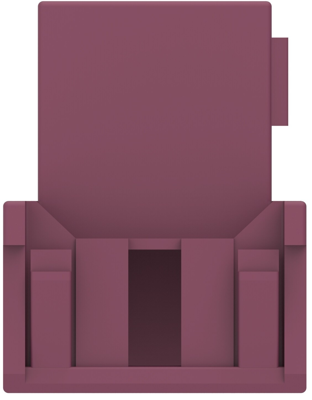

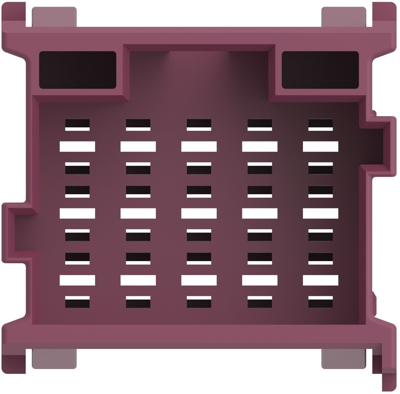

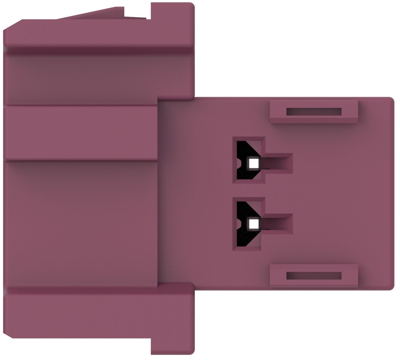

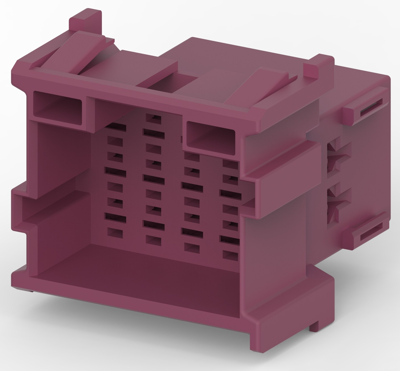

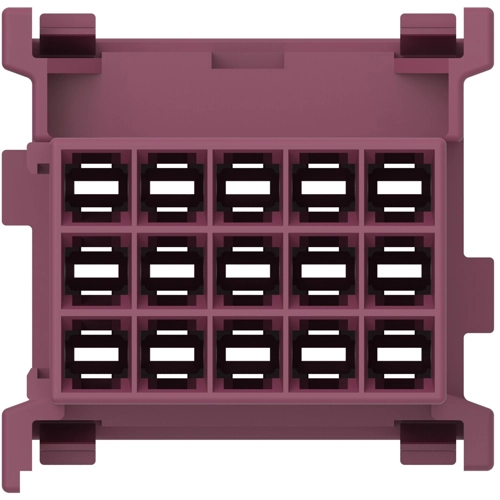

Plug, unequipped, 15 pole, straight, 3 rows, 4-967628-1
Order No.: 36P3179
EAN: 4099889901573
MPN:
4-967628-1
Unit Price (€ / pc.)
3.5938 € *
Available in 5 Days: 569 pcs. - if ordered today
Total Price:
3.59 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5938 €
10 pcs.
3.3082 €
50 pcs.
2.9750 €
100 pcs.
2.6775 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 4-967628-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 15, Number of rows: 3, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: other, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 30.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Type of locking | Yes | |
| Rated current | 24 A | |
| Grid | 5 mm | |
| Pin number | 15 pole | |
| Version | straight | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | plug | |
| Rated voltage | 28 V | |
| Number of rows | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
