4-1718346-1 | AMP
Socket, unequipped, 3 pole, straight, 1 row, 4-1718346-1
Unit Price (€ / pc.)
0.0904 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
1,085.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.0904 €

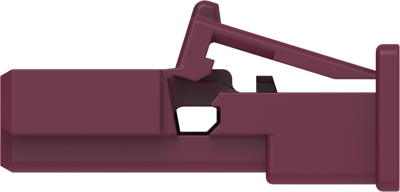

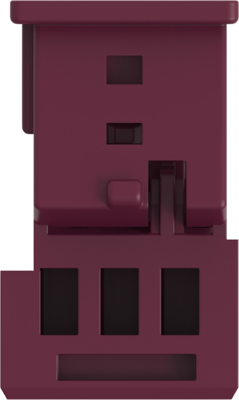

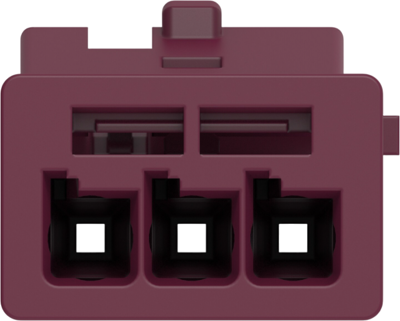

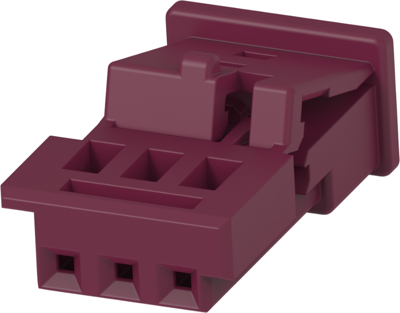

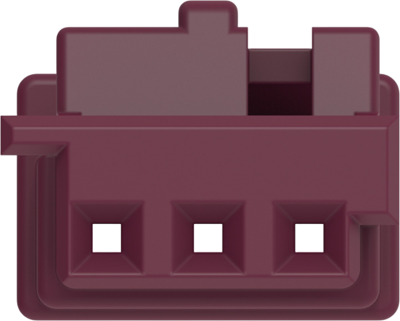

Socket housing, 4-1718346-1, AMP

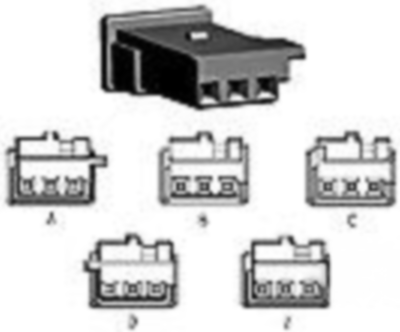

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Operating voltage: 24 VDC, Nominal voltage architecture: 24 V, Body material: PBT GF, Primary product color: other, Connector code: D, Mating tab width: 0.63 mm, Mating alignment type: polarized, Connector mounting type: cable mount (free-hanging), Centerline (pitch): 2.54 mm, Product height: 4.35 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | gerade | |
| Additional parts | unbestückt | |
| Contact type | Buchse | |
| Rated voltage | 24 V | |
| Pin number | 3-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
