4-1393375-3 | AMP

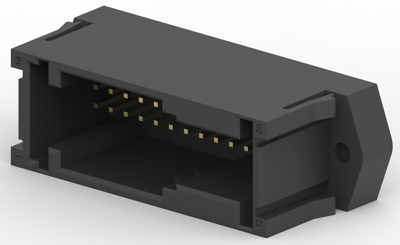

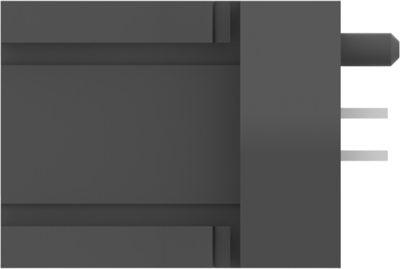

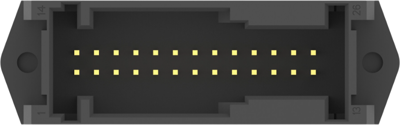

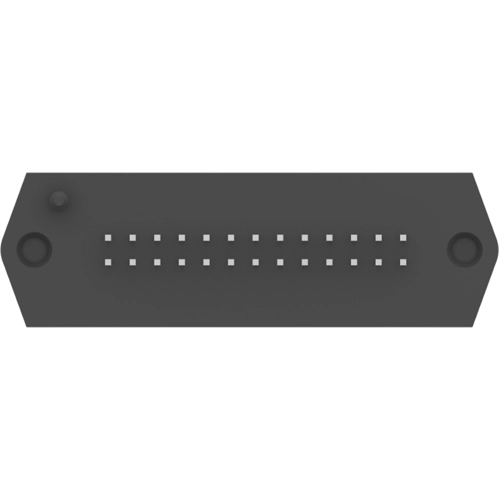

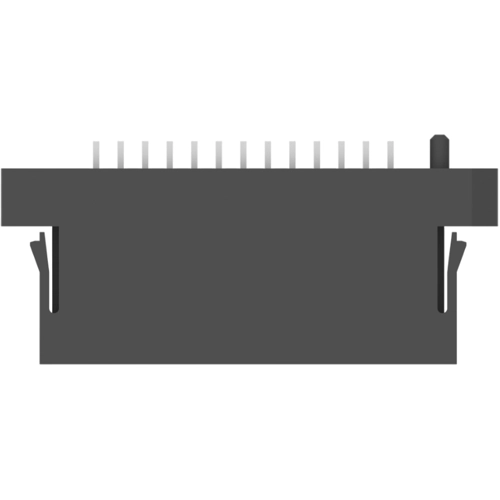

Plug, 26 pole, straight, 2 rows, black, 4-1393375-3

Order No.: 36P1269
EAN: 4099889894516
MPN:
4-1393375-3
4-1393375-3 AMP Automotive Power Connectors Image 1
4-1393375-3 AMP Automotive Power Connectors Image 2
4-1393375-3 AMP Automotive Power Connectors Image 3
4-1393375-3 AMP Automotive Power Connectors Image 4
4-1393375-3 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.9512 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
3,718.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1260 pcs.
2.9512 €

PCB mount header, 4-1393375-3, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 26, Number of positions: 26, PCB mount orientation: vertical, Number of rows: 2, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, Centerline (pitch): 2.54 mm, Profile Height from PCB: 20.3 mm, Shielded: no, Circuit application: signal, Packaging quantity: 1260, Interface number: 114-18063-140

Technical specifications
Version straight
Colour black
Type of locking No
contact surface tin-plated
Pin number 26 pole
Connection solder connection
Grid 2.54 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85369001
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
