368312-1 | AMP

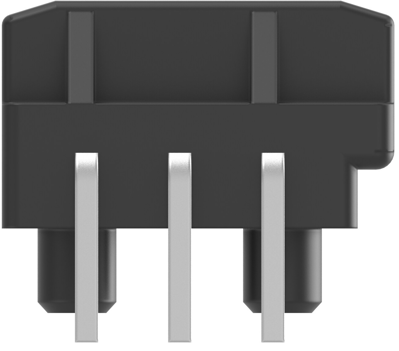

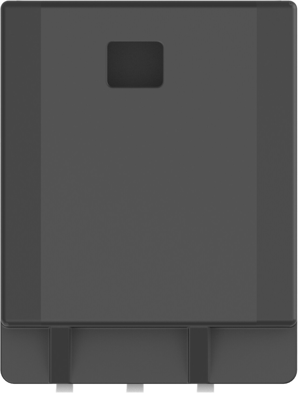

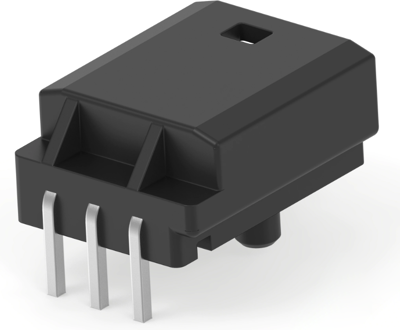

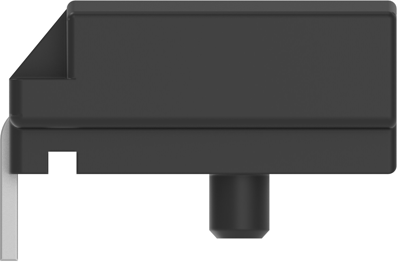

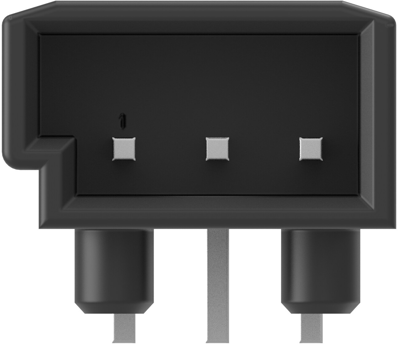

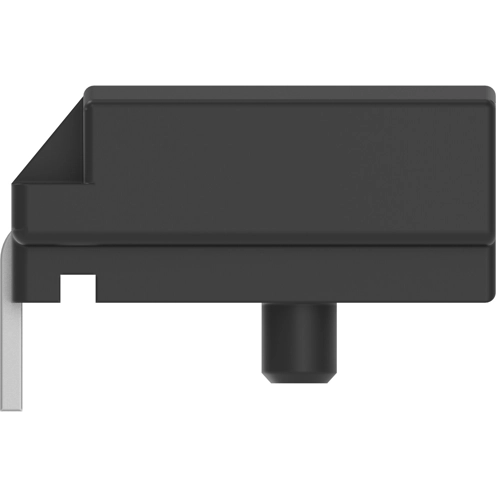

Plug, 3 pole, angled, 1 row, black, 368312-1
Unit Price (€ / pc.)
0.6069 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
3.03 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6069 €
10 pcs.
0.5712 €
25 pcs.
0.5236 €
50 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale
Hybrid header, 368312-1, AMP
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 3, Number of positions: 3, PCB mount orientation: horizontal, Number of rows: 1, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Width: 13.8 mm, Operating temperature (max): 100 °C, 105 °C, 110 °C, 120 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging quantity: 2500, Interface number: 956444-1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 3 pole | |
| Colour | black | |
| Contact type | plug | |
| Version | angled | |
| Connection | solder connection | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
