353826-1 | AMP

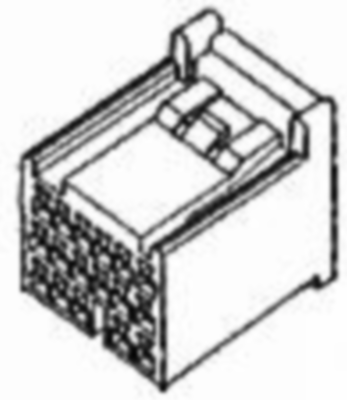

Socket, unequipped, 31 pole, straight, 3 rows, natural, 353826-1
Unit Price (€ / pc.)
1.1662 € *
Available in 5 Days: 575 pcs. - if ordered today
Total Price:
233.24 € *
Price list
Quantity
Price per unit*
200 pcs.
1.1662 €
400 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 353826-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 31, Number of rows: 3, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.8 mm, 3.13 mm, Row-to-row spacing: 4.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Type of locking | Yes | |
| Grid | 2.8 mm | |
| Pin number | 31 pole | |
| Version | straight | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Number of rows | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
