353107-2 | AMP
Socket, unequipped, 24 pole, straight, 2 rows, black, 353107-2
Unit Price (€ / pc.)
1.5113 € *
Available in 5 Days: 400 pcs. - if ordered today
Total Price:
226.70 € *
Price list
Quantity
Price per unit*
150 pcs.
1.5113 €
350 pcs.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale

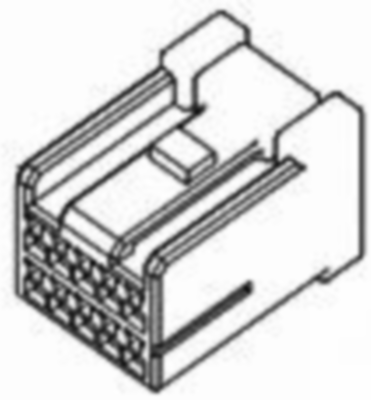

Socket housing, 353107-2, AMP
Row-to-row spacing: 4.6 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Number of positions: 24, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: black, Mating tab width:, Centerline (pitch): 2.5 mm, Height: 16.8 mm, Length: 36.5 mm, Width: 21 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: tray, Packaging quantity: 100, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 24 pole | |
| Version | straight | |
| Grid | 2.5 mm | |
| Connection | crimp connection | |
| Number of rows | 2 | |
| contact surface | gold-plated | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| Rated current | 3 A | |
| Additional parts | unequipped | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
