348822-2 | AMP

Socket, 16 pole, straight, 2 rows, gray, 348822-2

Order No.: 36P1967
EAN: 4099889897166
MPN:
348822-2

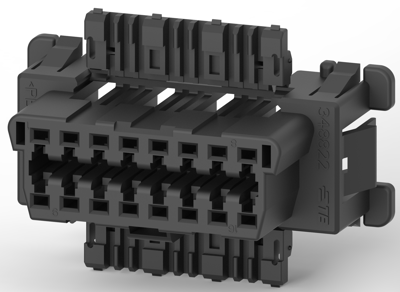

348822-2 AMP Automotive Power Connectors Image 1

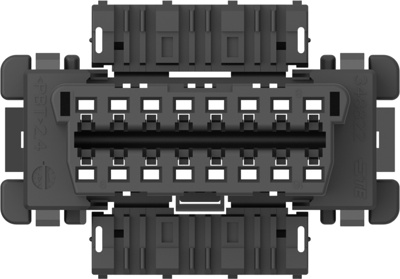

348822-2 AMP Automotive Power Connectors Image 2

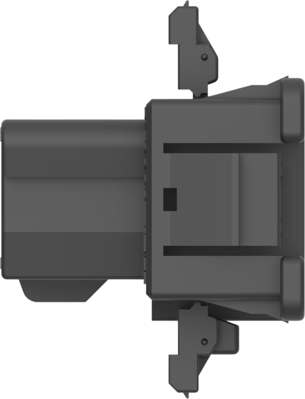

348822-2 AMP Automotive Power Connectors Image 3

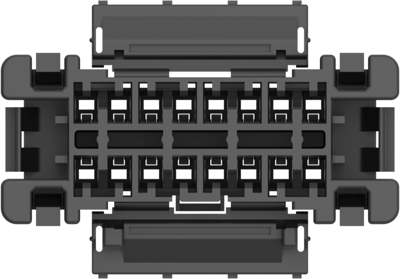

348822-2 AMP Automotive Power Connectors Image 4

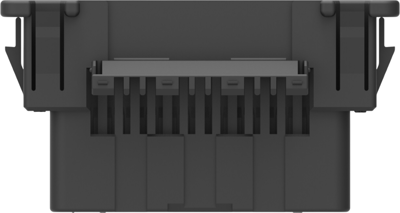

348822-2 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.0464 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,827.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
3.0464 €

Socket housing, 348822-2, AMP

Row-to-row spacing: 8.6 mm, Connector & housing type: housing for female terminals, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Blank cavity position: 0, Number of positions: 16, Number of rows: 2, Operating voltage: 30 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: gray, Mating tab width: 1.5 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 4 mm, Height: 21 mm, Length: 49.2 mm, Width: 26.2 mm, Operating temperature (max): 85 °C, Operating temperature range: -40-85 °C, -40-85 °C, Circuit application: power & signal, Packaging method: bag, Packaging quantity: 400, Serviceable: yes

Technical specifications
Version straight
Colour gray
Type of locking Yes
Rated voltage 30 V
Pin number 16 pole
Grid 4 mm
Number of rows 2
Rated current 10 A
Contact type socket
Logistics
Customs tariff number 85472000
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
