344271-1 | AMP

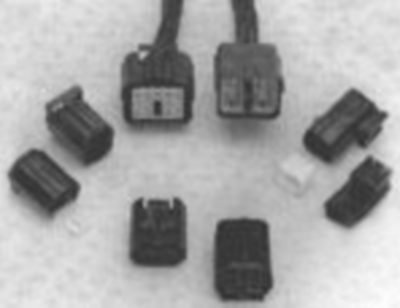

Plug, unequipped, 3 pole, straight, 1 row, black, 344271-1
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
20,134.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
36000 pcs.
0.5593 €
Plug housing, 344271-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 3, Number of rows: 1, Cable exit angle: 180°, Body material: PA, Primary product color: black, Mounting feature: without, Polarized, Centerline (pitch): 4.8 mm, Height: 19.8 mm, Length: 20.1 mm, Width: 33.35 mm, Circuit application: signal, Packaging method: package, Packaging quantity: 1200, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| Rated current | 10 A | |
| Grid | 4.8 mm | |
| Pin number | 3 pole | |
| Version | straight | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | plug | |
| Rated voltage | 24 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
