344263-1 | AMP

Socket, unequipped, 13 pole, straight, 3 rows, black, 344263-1

Order No.: 35P9156
EAN: 4099889889000
MPN:
344263-1
Series: Econseal

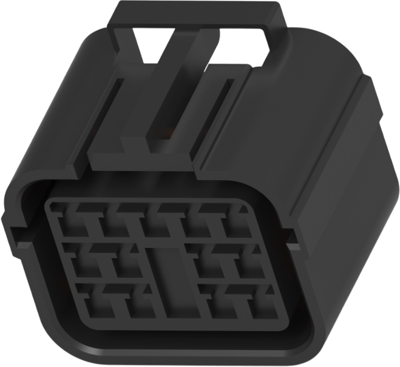

344263-1 AMP Automotive Power Connectors Image 1

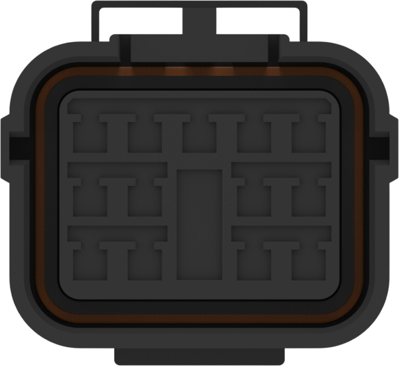

344263-1 AMP Automotive Power Connectors Image 2

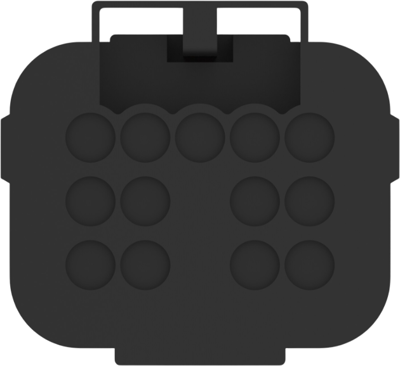

344263-1 AMP Automotive Power Connectors Image 3

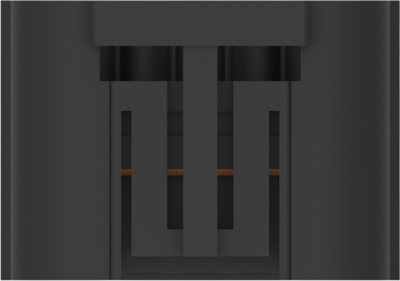

344263-1 AMP Automotive Power Connectors Image 4

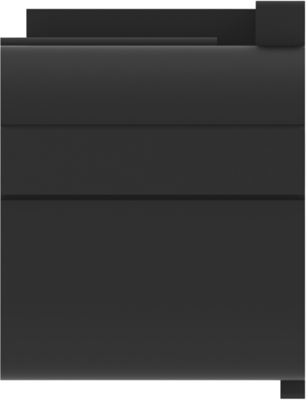

344263-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
737.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
1.8445 €

Socket housing, 344263-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 13, Number of rows: 1, Body material: PA, Primary product color: black, Mating alignment type: polarized, Centerline (pitch): 4.8 mm, Row-to-row spacing: 5.6 mm, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 13 V
Pin number 13 pole
Connection crimp connection
Grid 4.8 mm
Number of rows 3
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
