344261-1 | AMP

Plug, unequipped, 13 pole, straight, 3 rows, yellow, 344261-1

Order No.: 35P9158
EAN: 4099889889024
MPN:
344261-1
Series: Econseal

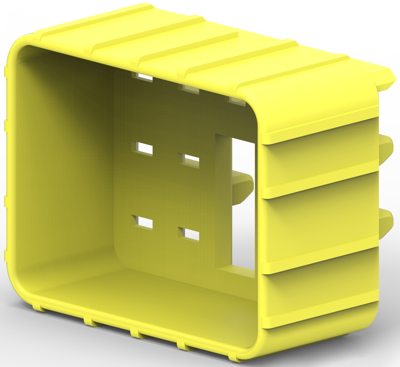

344261-1 AMP Automotive Power Connectors Image 1

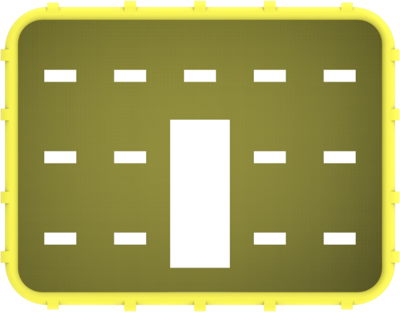

344261-1 AMP Automotive Power Connectors Image 2

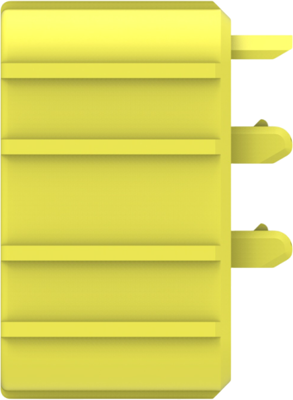

344261-1 AMP Automotive Power Connectors Image 3

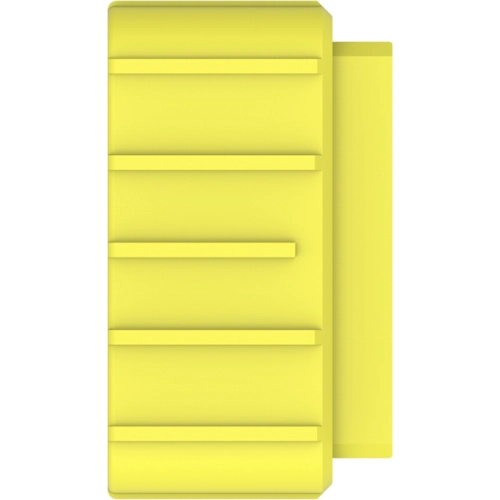

344261-1 AMP Automotive Power Connectors Image 4

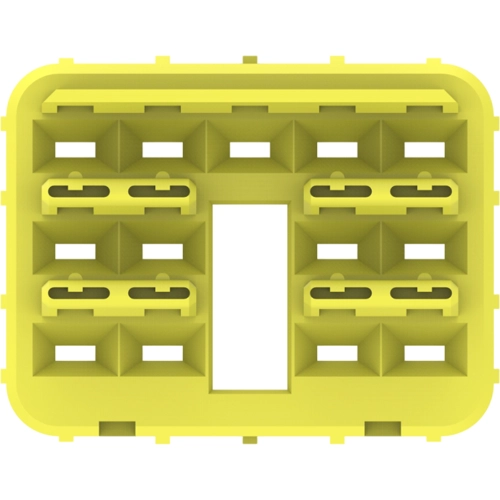

344261-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
0.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.8092 €

Pin housing, 344261-1, AMP

Row-to-row spacing: 5.6 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 13, Number of rows: 3, Cable exit angle: 180°, Body material: PA, Primary product color: yellow, Mating tab width: 2.2 mm, Mounting feature: without, Polarized, Centerline (pitch): 4.8 mm, Height: 21.2 mm, Length: 27.35 mm, Width: 12.4 mm, Circuit application: signal, Packaging method: box, Packaging quantity: 500, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour yellow
Type of locking No
Pin number 13 pole
Grid 4.8 mm
Number of rows 3
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
