344108-1 | AMP

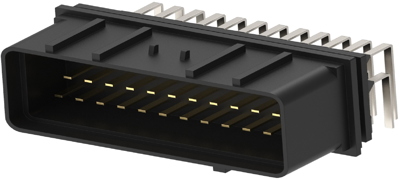

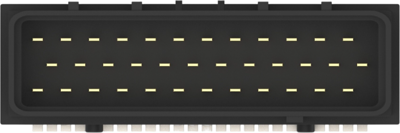

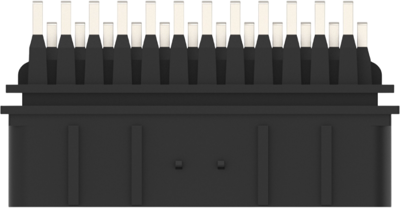

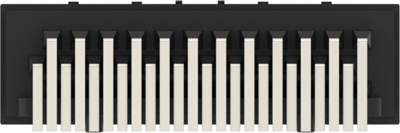

Plug, 36 pole, angled, 3 rows, black, 344108-1
Order No.: 35P9285
EAN: 4099889889376
MPN:
344108-1
Unit Price (€ / pc.)
27.9531 € *
Available in 5 Days: 234 pcs. - if ordered today
Total Price:
27.95 € *
Price list
Quantity
Price per unit*
1 pcs.
27.9531 €
5 pcs.
26.5132 €
10 pcs.
24.7996 €
25 pcs.
22.6100 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 344108-1, AMP
Hybrid header: no, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 36, Number of positions: 36, PCB mount orientation: horizontal, Number of rows: 3, Voltage Rating (Max): 12 VDC, Primary product color: black, Contact mating area plating material: gold (Au), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 5 mm, Product length: 70.8 mm, Shielded: no, UL flammability rating: none, Packaging quantity: 117
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | plug | |
| contact surface | gold-plated | |
| Version | angled | |
| Rated current | 10 A | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| Number of rows | 3 | |
| Colour | black | |
| Pin number | 36 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | NL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
