344103-1 | AMP

Plug, 18 pole, angled, 3 rows, black, 344103-1

Order No.: 35P9283
EAN: 4099889889369
MPN:
344103-1

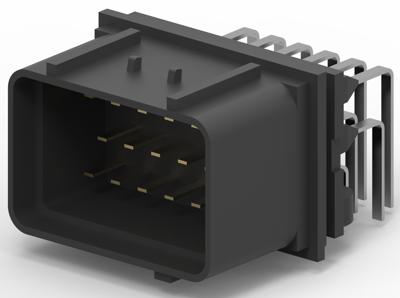

344103-1 AMP Automotive Power Connectors Image 1

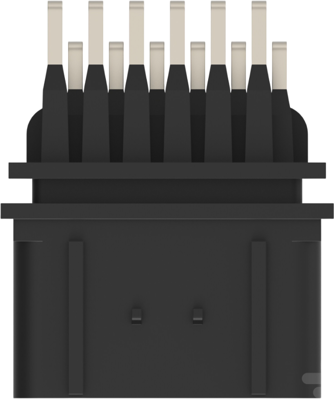

344103-1 AMP Automotive Power Connectors Image 2

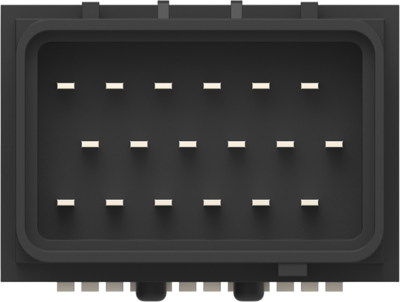

344103-1 AMP Automotive Power Connectors Image 3

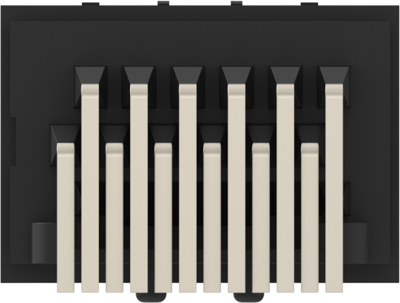

344103-1 AMP Automotive Power Connectors Image 4

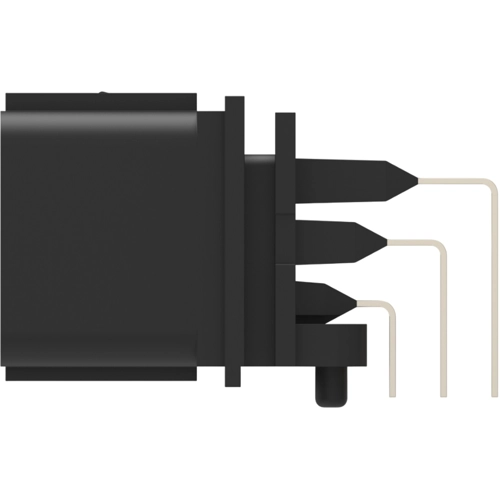

344103-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
24.0737 € *
Available in 5 Days: 77 pcs. - if ordered today
Total Price:
24.07 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0737 €
10 pcs.
22.1459 €
25 pcs.
19.9325 €
50 pcs.
17.9333 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 344103-1, AMP

Hybrid header: no, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of sections: 1, PCB mount orientation: horizontal, Number of rows: 3, Primary product color: black, Mating tab width: 1.8 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: gold (Au), PCB mount retention type: solder tail, Centerline (pitch): 5 mm, Product length: 52.71 mm, Shielded: yes, Circuit application: signal, Packaging quantity: 195

Technical specifications
Version angled
Colour black
Type of locking Yes
contact surface gold-plated
Pin number 18 pole
Connection solder connection
Grid 5 mm
Number of rows 3
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin NL
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
