3-967618-1 | AMP

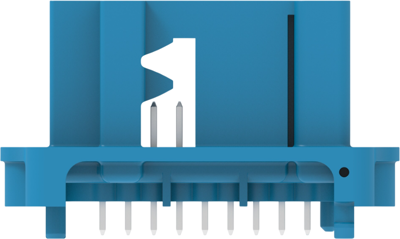

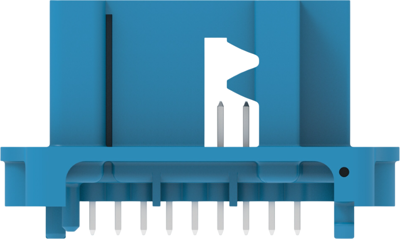

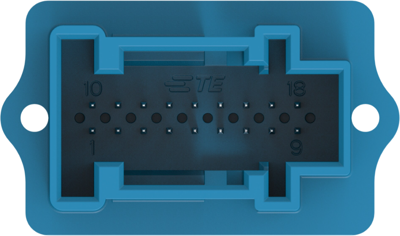

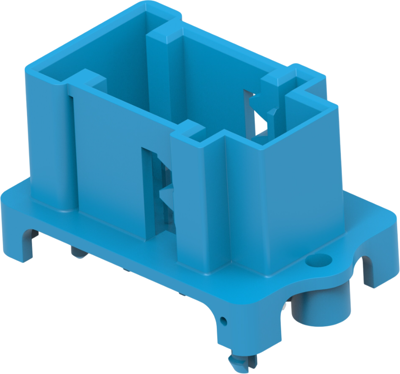

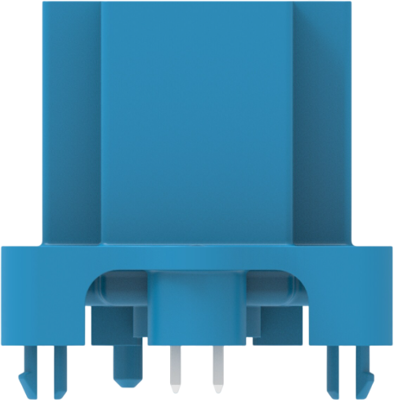

Plug, 18 pole, straight, 2 rows, blue, 3-967618-1
Order No.: 36P1243
EAN: 4099889894325
MPN:
3-967618-1
Hybrid header, 3-967618-1, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of positions: 18, PCB mount orientation: vertical, Number of rows: 2, Voltage Rating (Max): 24 VDC, Primary product color: blue, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Width: 23.08 mm, Circuit application: signal, UL flammability rating: none, Packaging quantity: 42, Interface number: 114-18063-023
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 18 pole | |
| Version | straight | |
| Grid | 2.54 mm | |
| Connection | solder connection | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Rated voltage | 24 V | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
