3-966140-2 | AMP

Plug, 15 pole, angled, 3 rows, black, 3-966140-2

Order No.: 36P3254
EAN: 4099889902075
MPN:
3-966140-2

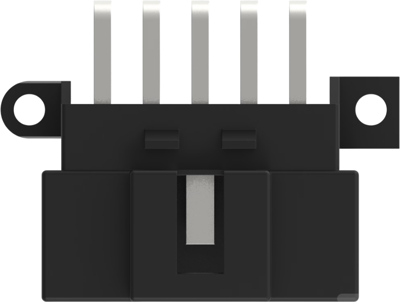

3-966140-2 AMP Automotive Power Connectors Image 1

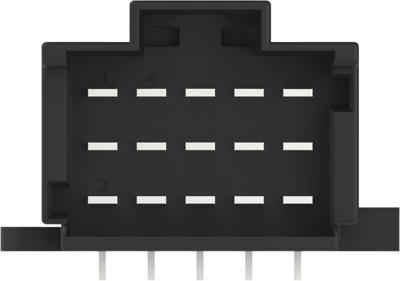

3-966140-2 AMP Automotive Power Connectors Image 2

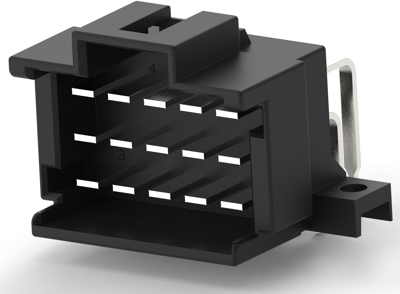

3-966140-2 AMP Automotive Power Connectors Image 3

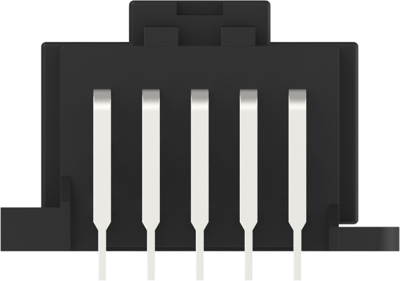

3-966140-2 AMP Automotive Power Connectors Image 4

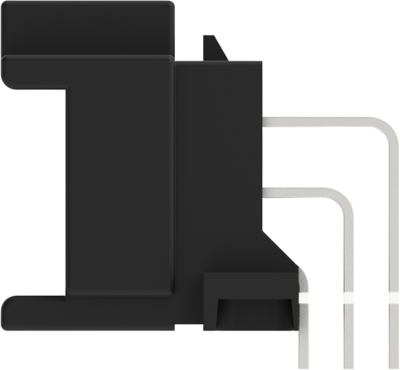

3-966140-2 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
13.9587 € *
Available in 5 Days: 84 pcs. - if ordered today
Total Price:
13.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.9587 €

Hybrid header, 3-966140-2, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 15, Number of positions: 15, PCB mount orientation: horizontal, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, Primary product color: black, Mating tab width: 2.8 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention type: solder tail, Centerline (pitch): 3.5 mm, Width: 20.3 mm, Operating temperature (max): 100 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging quantity: 112

Technical specifications
Version angled
Colour black
Type of locking Yes
Rated voltage 24 V
contact surface silver-plated
Pin number 15 pole
Connection solder connection
Grid 3.5 mm
Number of rows 3
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin TW
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
