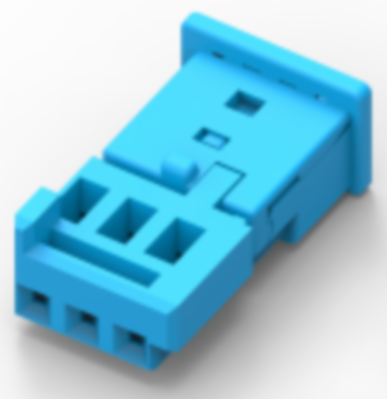

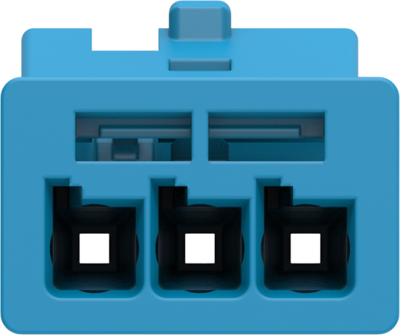

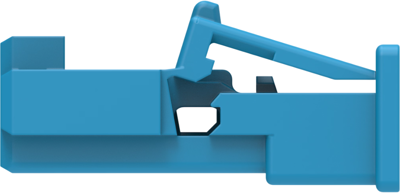

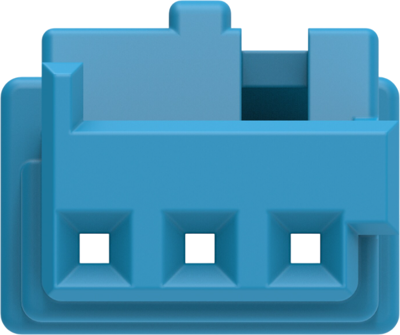

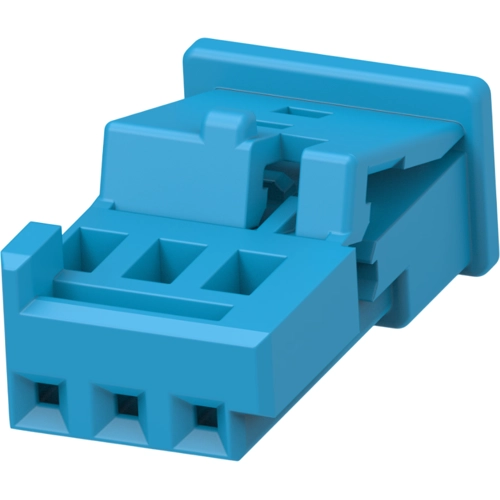

3-1718346-1 | AMP
Socket, unequipped, 3 pole, straight, 1 row, blue, 3-1718346-1
Order No.: 36P1120
EAN: 4099889893366
MPN:
3-1718346-1
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3927 €
10 pcs.
0.3689 €
25 pcs.
0.3332 €
50 pcs.
0.3070 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 3-1718346-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Body material: PBT GF, Primary product color: blue, Connector code: C, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 6.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 24 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | blue | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
