3-1419158-0 | AMP

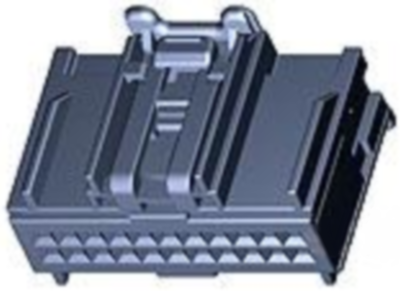

Socket, unequipped, 22 pole, straight, 2 rows, green, 3-1419158-0
Order No.: 35P9494
EAN: 4099889890044
MPN:
3-1419158-0
Unit Price (€ / pc.)
1.2376 € *
Standard delivery time from the manufacturer is: 9 Weeks
Socket housing, 3-1419158-0, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 22, Number of rows: 2, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: green, Mating tab width: 0.64 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Product height: 18.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Packaging method: carton, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Type of locking | Yes | |
| Grid | 2.54 mm | |
| Pin number | 22 pole | |
| Version | straight | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 14 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
