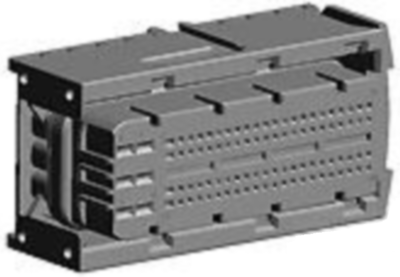

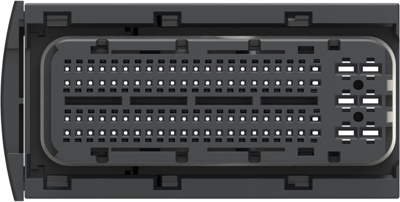

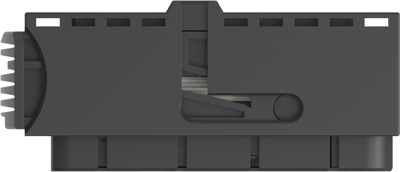

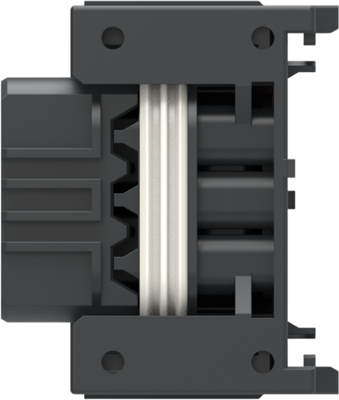

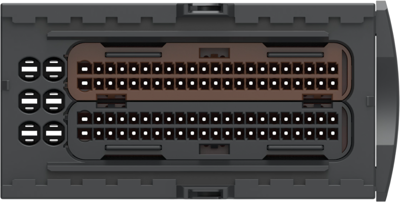

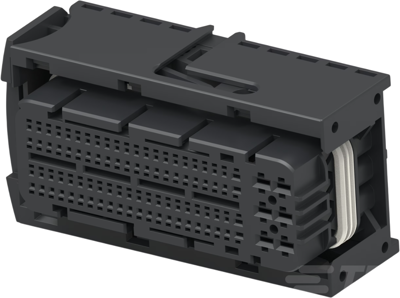

Socket housing, 3-1355136-3, AMP
Row-to-row spacing: 3 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Blank cavity position: 4, 6, 84, Number of positions: 94, Number of rows: 4, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Body material: PBT GF, Primary product color: black, Mating tab width: 0.63 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 2.54 mm, Height: 43 mm, Length: 85.3 mm, Width: 36.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
