284716-1 | AMP

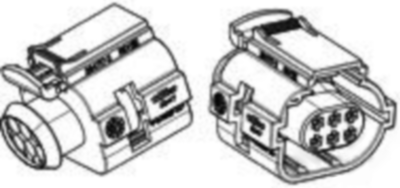

Socket, unequipped, 6 pole, straight, 2 rows, gray, 284716-1

Order No.: 36P2804
EAN: 4099889898545
MPN:
284716-1
284716-1 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
1.7731 € *
Available in 5 Days: 28,200 pcs. - if ordered today
Total Price:
1,063.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
1.7731 €

Socket housing, 284716-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Blank cavity position: 2, 3, 4, 6, Number of positions: 6, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: gray, Mating tab width: 1.5 mm, Strain relief: no, Centerline (pitch): 4 mm, Row-to-row spacing: 5 mm, Operating temperature (max): 70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C, Operating temperature range: -40-140 °C, Circuit application: signal, Packaging method: bag, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Filter Property Value
Colour gray
Type of locking Yes
Rated current 10 A
Grid 4 mm
Pin number 6 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Rated voltage 24 V
Number of rows 2
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
