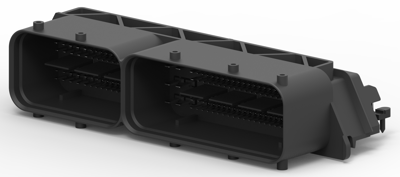

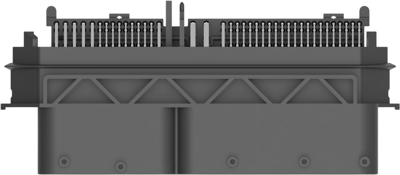

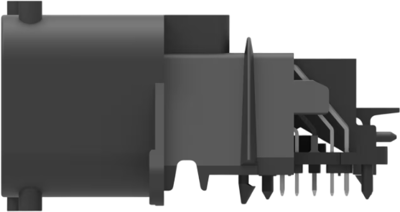

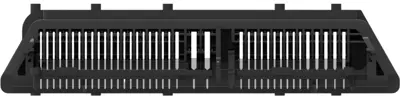

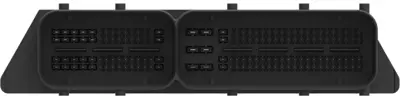

Hybrid header, 284617-1, AMP
Hybrid header: yes, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 120, Number of positions: 154, PCB mount orientation: horizontal, Number of rows: 4, Nominal voltage architecture: 12 V, Primary product color: black, Mating tab width: 0.63 mm, 1.5 mm, 2.8 mm, Mating tab thickness: 0.6 mm, 0.63 mm, 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.5 mm, 3.5 mm, 5.2 mm, PCB thickness (recommended): 1.6 mm, Operating temperature (max): 100 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -40-100 °C, Circuit application: power & signal, Packaging quantity: 15, Interface number: 284743-1
