284159-1 | AMP

Socket, unequipped, 12 pole, angled, 2 rows, natural, 284159-1

Order No.: 36P1584
EAN: 4099889896008
MPN:
284159-1
Series: Multilock

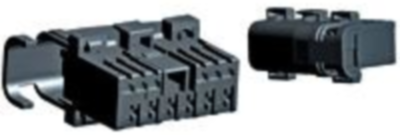

284159-1 AMP Automotive Power Connectors Image 1

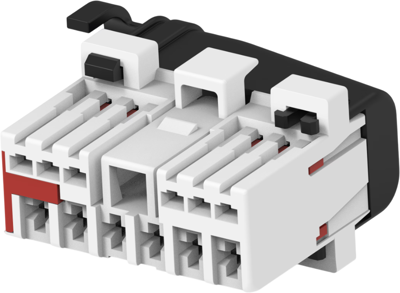

284159-1 AMP Automotive Power Connectors Image 2

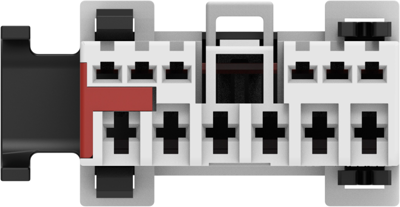

284159-1 AMP Automotive Power Connectors Image 3

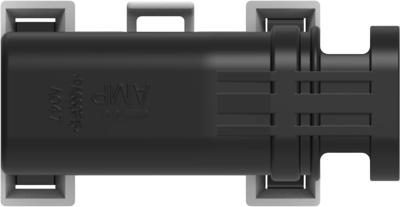

284159-1 AMP Automotive Power Connectors Image 4

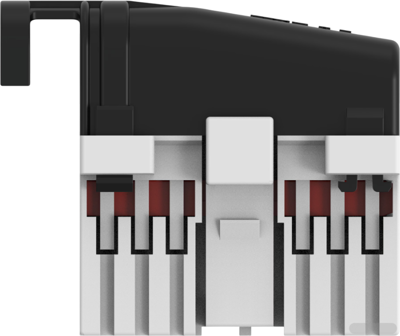

284159-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.4637 € *
Available in 5 Days: 700 pcs. - if ordered today
Total Price:
1.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4637 €

Socket housing, 284159-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Number of positions: 12, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: natural, Mating tab width: 1.8 mm, 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, 5 mm, Row-to-row spacing: 5.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -30-85 °C, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version angled
Colour natural
Type of locking Yes
Rated voltage 24 V
Pin number 12 pole
Connection crimp connection
Grid 3.5 mm
Number of rows 2
Rated current 35 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
