284106-2 | AMP

Plug, unequipped, 5 pole, straight, 2 rows, black, 284106-2

Order No.: 36P1908
EAN: 4099889897067
MPN:
284106-2

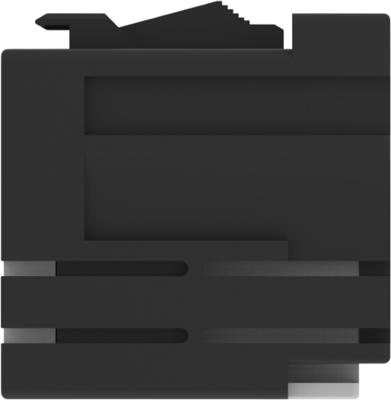

284106-2 AMP Automotive Power Connectors Image 1

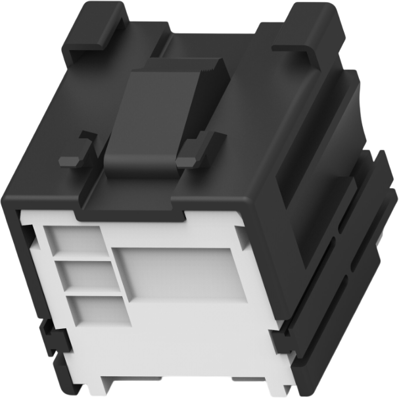

284106-2 AMP Automotive Power Connectors Image 2

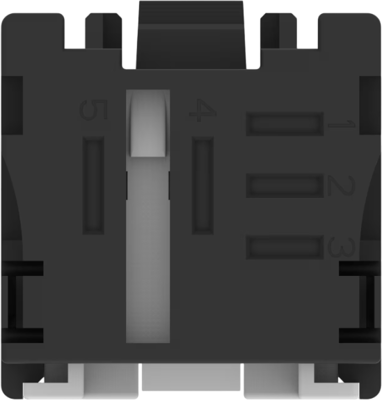

284106-2 AMP Automotive Power Connectors Image 3

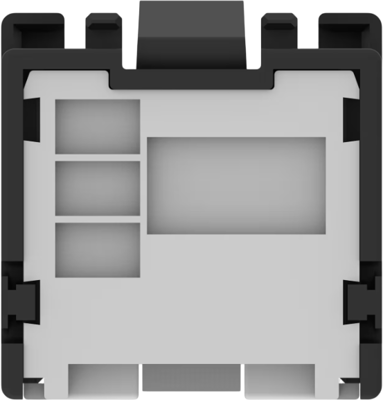

284106-2 AMP Automotive Power Connectors Image 4

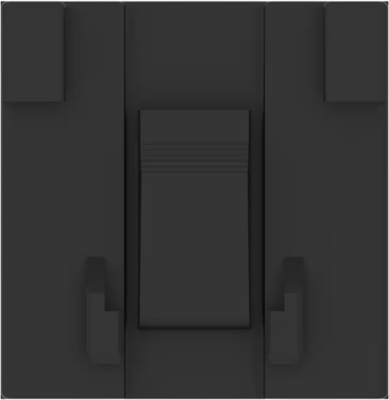

284106-2 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
556.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
0.9282 €

Plug housing, 284106-2, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 5, Number of rows: 2, Body material: PA GF, Primary product color: black, Mating alignment type: polarized, Centerline (pitch): 6 mm, 8 mm, Product height: 28.5 mm, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 24 V
Pin number 5 pole
Grid 6 mm
Number of rows 2
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
