282991-2 | AMP

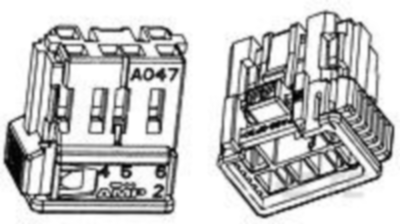

Socket, unequipped, 20 pole, straight, 2 rows, black, 282991-2
Order No.: 36P1596
EAN: 4099889896091
MPN:
282991-2
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 7 Weeks
Socket housing, 282991-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 20, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: black, Mating tab width: 1.7 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Row-to-row spacing: 5.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 14 A | |
| Rated voltage | 24 V | |
| Version | straight | |
| Number of rows | 2 | |
| Additional parts | unequipped | |
| Pin number | 20 pole | |
| Grid | 3.5 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | black | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
