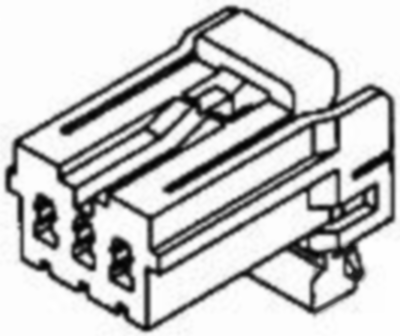

Socket housing, 282627-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 3, Number of rows: 1, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PBT, Primary product color: white, Mating tab width: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 3.5 mm, Height: 21.6 mm, Length: 13.9 mm, Width: 15.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 4000, Serviceable: yes, Connector position assurance capable: no
