282545-1 | AMP

Plug, unequipped, 3 pole, straight, 1 row, black, 282545-1

Order No.: 36P2885
EAN: 4099889899153
MPN:
282545-1

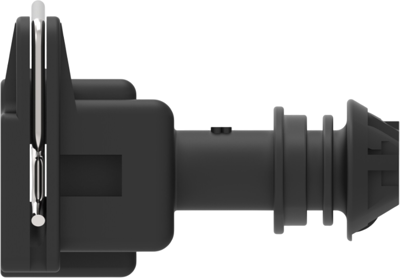

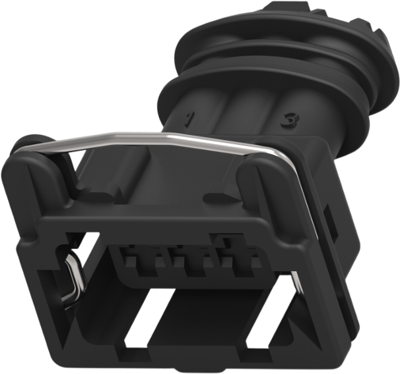

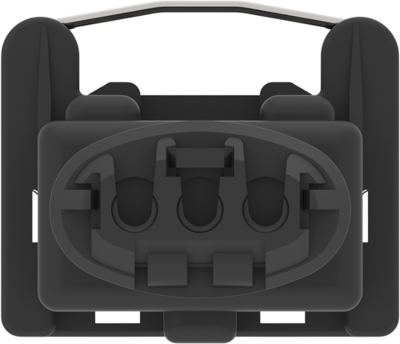

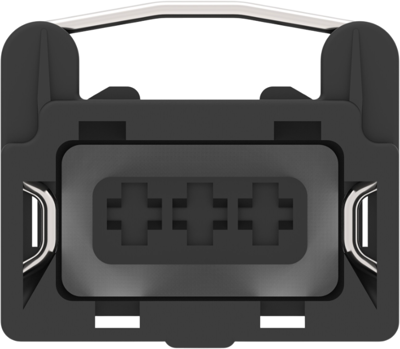

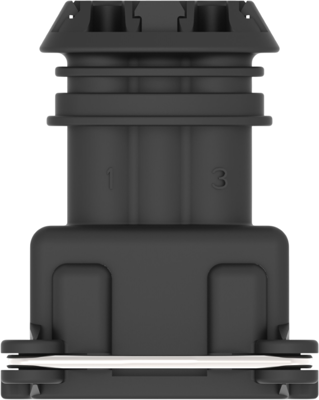

282545-1 AMP Automotive Power Connectors Image 1
282545-1 AMP Automotive Power Connectors Image 2
282545-1 AMP Automotive Power Connectors Image 3
282545-1 AMP Automotive Power Connectors Image 4
282545-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available in 5 Days: 650 pcs. - if ordered today
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6422 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 282545-1, AMP

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PA, Primary product color: black, Mating tab width: 3 mm, Mounting feature: without, Polarized, Centerline (pitch): 5 mm, Height: 38.2 mm, Length: 30.4 mm, Width: 24.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -30-125 °C, Circuit application: signal, Degree of protection: IP54K, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 24 V
Pin number 3 pole
Connection crimp connection
Grid 5 mm
Number of rows 1
Rated current 20 A
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
