282369-1 | AMP

Socket, unequipped, 20 pole, straight, 2 rows, natural, 282369-1

Order No.: 36P1547
EAN: 4099889895698
MPN:
282369-1
282369-1 AMP Automotive Power Connectors Image 1

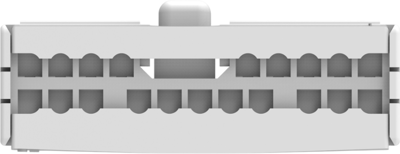

282369-1 AMP Automotive Power Connectors Image 2

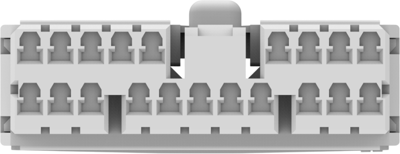

282369-1 AMP Automotive Power Connectors Image 3

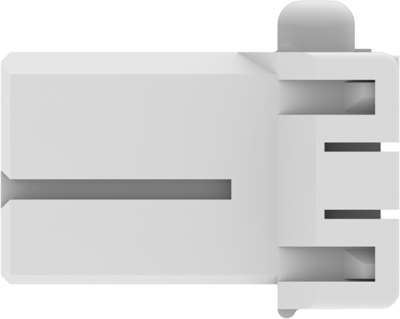

282369-1 AMP Automotive Power Connectors Image 4

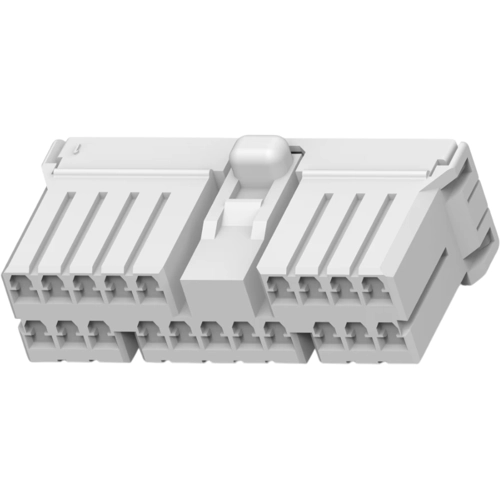

282369-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
21,784.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
16200 pcs.
1.3447 €

Socket housing, 282369-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 20, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT, Primary product color: natural, Mating tab width: 1.8 mm, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Row-to-row spacing: 5.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking Yes
Rated voltage 24 V
Pin number 20 pole
Connection crimp connection
Grid 3.5 mm
Number of rows 2
Rated current 14 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
