281810-2 | AMP

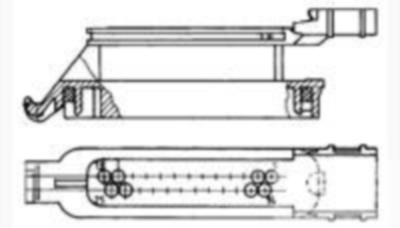

Plug, unequipped, 25 pole, angled, 2 rows, black, 281810-2
Order No.: 36P3669
EAN: 4099889902211
MPN:
281810-2
Unit Price (€ / pc.)
15.6723 € *
Available in 5 Days: 94 pcs. - if ordered today
Total Price:
15.67 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6723 €
10 pcs.
14.4109 €
50 pcs.
12.9710 €
100 pcs.
11.6739 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 281810-2, AMP
Row-to-row spacing: 5.6 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Number of positions: 25, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 90°, Body material: PA GF, Primary product color: black, Mounting feature: without, Polarized, Centerline (pitch): 5 mm, Height: 39.6 mm, Length: 100.3 mm, Width: 25 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Degree of protection: IP54K, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| Grid | 5 mm | |
| Pin number | 25 pole | |
| Version | angled | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | plug | |
| Rated voltage | 24 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
