281810-1 | AMP

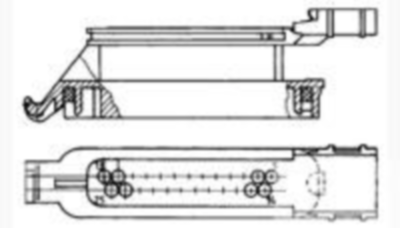

Plug, unequipped, 25 pole, angled, 2 rows, black, 281810-1
Order No.: 36P3660
EAN: 4099889902204
MPN:
281810-1
Unit Price (€ / pc.)
8.7465 € *
Available in 5 Days: 3,306 pcs. - if ordered today
Total Price:
8.75 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7465 €
10 pcs.
8.0563 €
50 pcs.
7.2471 €
100 pcs.
6.5212 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 281810-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 25, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: black, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Degree of protection: IP54K, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Type of locking | Yes | |
| Grid | 5 mm | |
| Pin number | 25 pole | |
| Version | angled | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | plug | |
| Rated voltage | 24 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
