2306960-1 | AMP

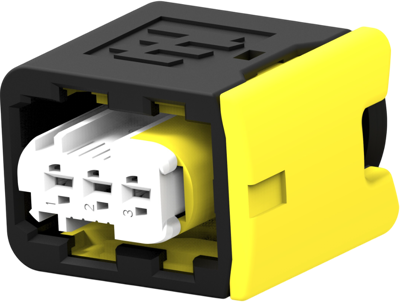

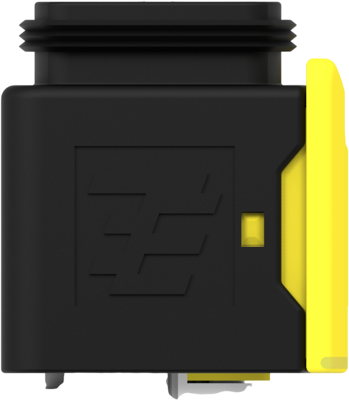

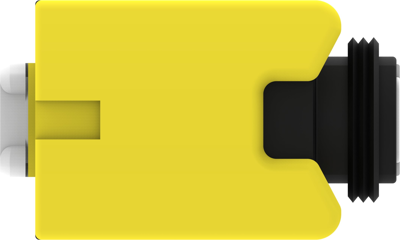

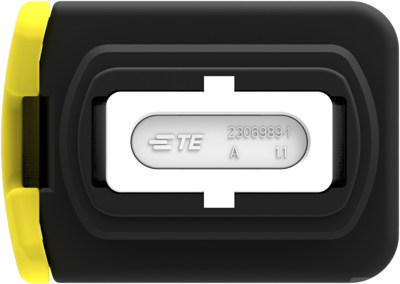

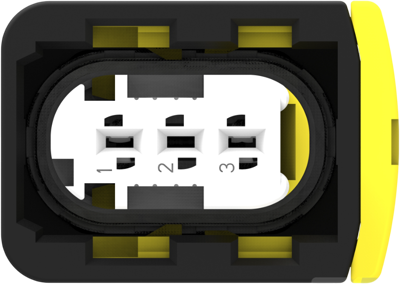

Socket housing, 3 pole, straight, 1 row, black, 2306960-1
Unit Price (€ / pc.)
15.6247 € *
Available in 5 Days: 606 pcs. - if ordered today
Total Price:
15.62 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6247 €
10 pcs.
14.5656 €
50 pcs.
13.6374 €
100 pcs.
12.8282 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 2306960-1, AMP
3 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4 mm Centerline, Sealable, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| Pin number | 3 pole | |
| Colour | black | |
| Contact type | socket | |
| Rated current | 20 A | |
| Version | straight | |
| Connection | crimp connection | |
| Number of rows | 1 | |
| Rated voltage | 60 V | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
