2138846-1 | AMP

Plug, unequipped, 28 pole, angled, 4 rows, black, 2138846-1

Order No.: 36P3901
EAN: 4099889904017
MPN:
2138846-1
Series: AMPSEAL

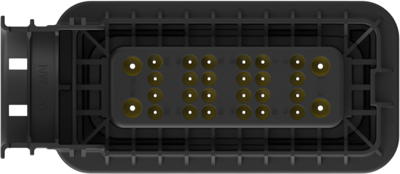

2138846-1 AMP Automotive Power Connectors Image 1

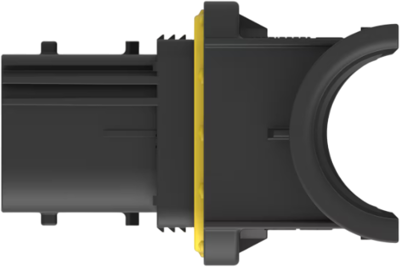

2138846-1 AMP Automotive Power Connectors Image 2

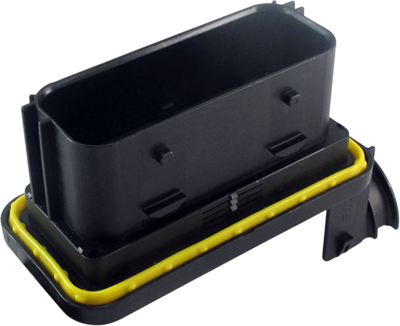

2138846-1 AMP Automotive Power Connectors Image 3

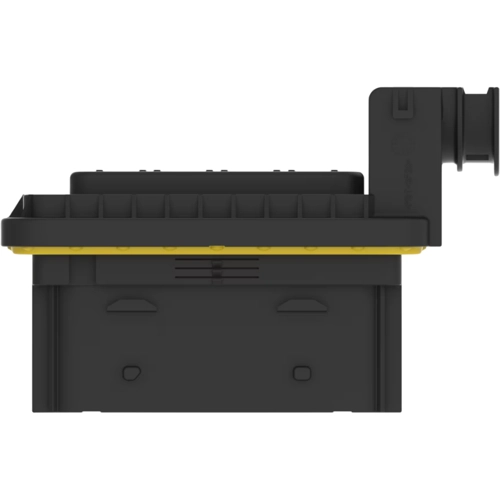

2138846-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
18.7425 € *
Available in 5 Days: 89 pcs. - if ordered today
Total Price:
18.74 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7425 €
10 pcs.
17.2431 €
25 pcs.
15.5176 €
50 pcs.
13.9706 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 2138846-1, AMP

Row-to-row spacing: 5.9 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Number of positions: 28, Number of rows: 4, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, 500 V, 550 V, Operating voltage: 550 VDC, Cable exit angle: 90°, Body material: PBT GF, Primary product color: black, Mounting feature: without, Polarized, Centerline (pitch): 5.3 mm, Height: 48.45 mm, Length: 111.25 mm, Width: 72.75 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -55-125 °C, UL flammability rating: UL 94-HB, Packaging method: tray, Packaging quantity: 10, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version angled
Colour black
Type of locking Yes
Rated voltage 550 V
Pin number 28 pole
Connection crimp connection
Grid 5.3 mm
Number of rows 4
Rated current 13 A
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389011
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
