2138839-1 | AMP

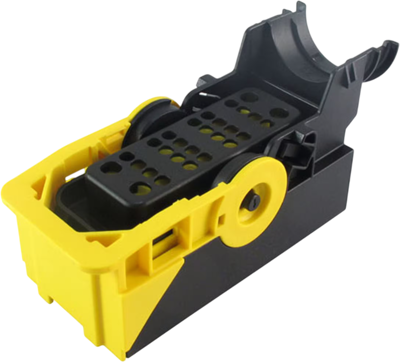

Socket, unequipped, 28 pole, angled, 4 rows, black, 2138839-1
Unit Price (€ / pc.)
21.9079 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Socket housing, 2138839-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 28, Number of rows: 4, Operating voltage: 550 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, 500 V, 550 V, Body material: PBT GF, Primary product color: black, Mating alignment type: polarized, Centerline (pitch): 5.3 mm, Row-to-row spacing: 6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -55-125 °C, UL flammability rating: UL 94HB, Packaging method: tray, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 4 | |
| Version | angled | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| Rated voltage | 550 V | |
| Rated current | 25 A | |
| Pin number | 28 pole | |
| Grid | 5.3 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
