2-968976-9 | AMP

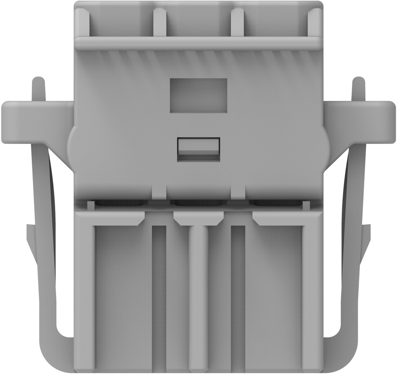

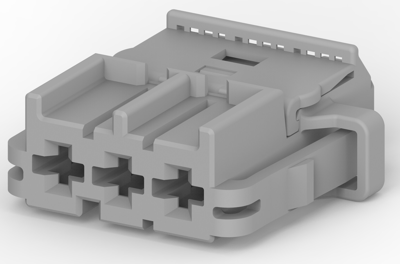

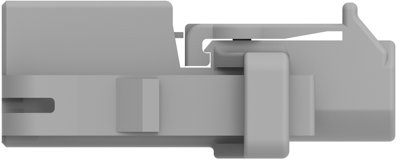

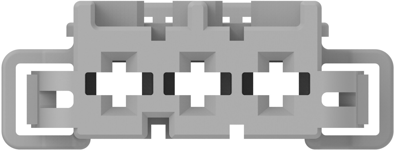

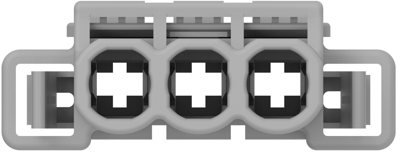

Socket, unequipped, 3 pole, straight, 1 row, gray, 2-968976-9
Unit Price (€ / pc.)
1.7374 € *
Available in 5 Days: 150 pcs. - if ordered today
Total Price:
8.69 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7374 €
10 pcs.
1.6065 €
25 pcs.
1.4994 €
50 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 2-968976-9, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: gray, Mating tab width: 2.8 mm, Strain relief: no, Centerline (pitch): 5.5 mm, Product height: 9.7 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: carton, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.5 mm | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Version | straight | |
| Rated voltage | 28 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | gray | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
