2-967642-2 | AMP

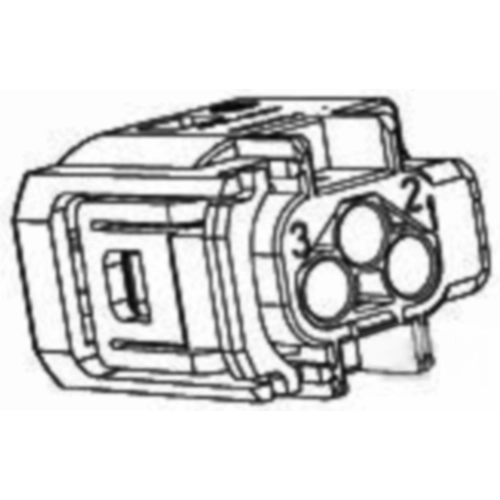

Socket, unequipped, 3 pole, straight, 2 rows, gray, 2-967642-2
Order No.: 35P9969
EAN: 4099889891454
MPN:
2-967642-2
Unit Price (€ / pc.)
1.5232 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Socket housing, 2-967642-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 2, Operating voltage: 50 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: PBT GF, Primary product color: gray, Mating tab width: 0.63 mm, Strain relief: no, Row-to-row spacing: 6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94V-0, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | gray | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated voltage | 50 V | |
| Rated current | 7.5 A | |
| Pin number | 3 pole | |
| Grid | 6.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
