2-967616-1 | AMP

Socket, unequipped, 6 pole, straight, 2 rows, gray, 2-967616-1

Order No.: 35P9970
EAN: 4099889891461
MPN:
2-967616-1
Series: MQS

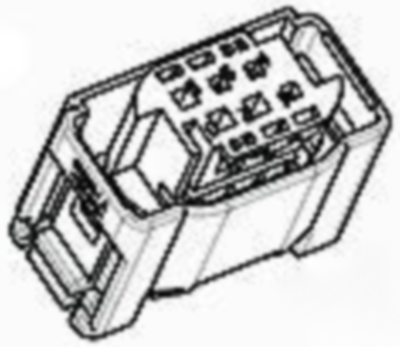

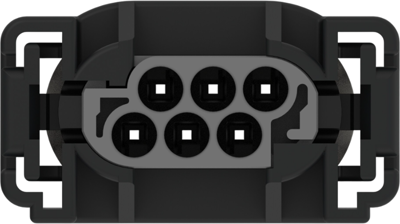

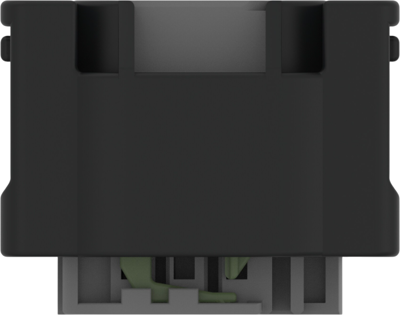

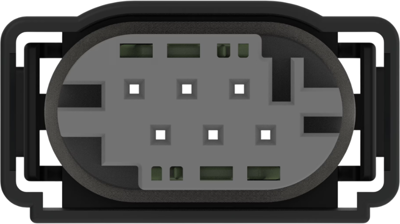

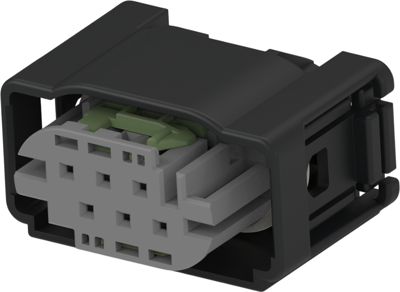

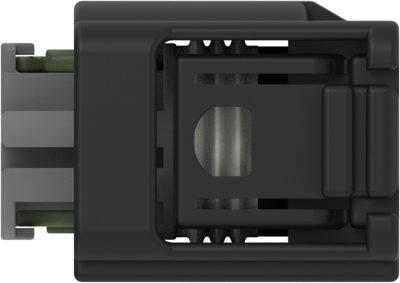

2-967616-1 AMP Automotive Power Connectors Image 1
2-967616-1 AMP Automotive Power Connectors Image 2
2-967616-1 AMP Automotive Power Connectors Image 3
2-967616-1 AMP Automotive Power Connectors Image 4
2-967616-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6898 €

Socket housing, 2-967616-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 2, Operating voltage: 50 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: PBT GF, Primary product color: gray, Connector code: B, Mating tab width: 0.63 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Row-to-row spacing: 6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Number of rows 2
Type of locking Yes
Colour gray
Connection crimp connection
Rated voltage 50 V
Contact type socket
Grid 4 mm
Rated current 24 A
Pin number 6 pole
Version straight
Additional parts unequipped
Logistics
Customs tariff number 85389011
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
