2-967402-1 | AMP

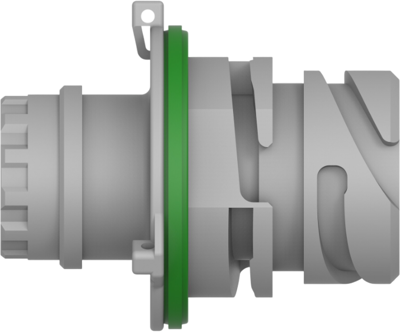

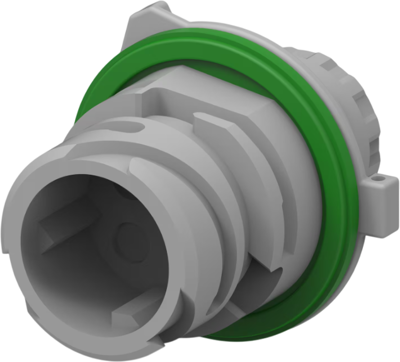

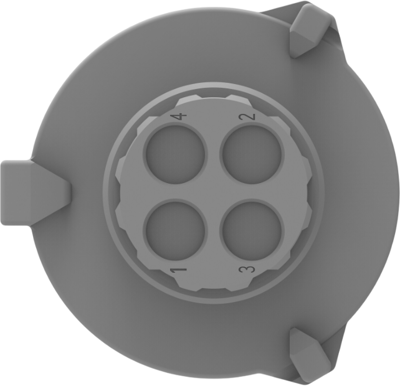

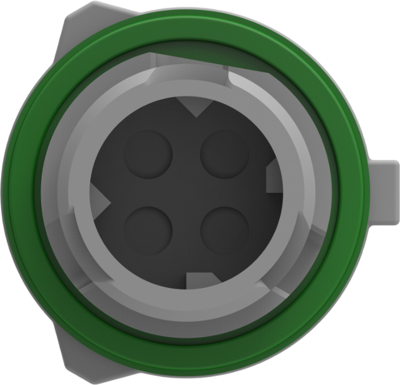

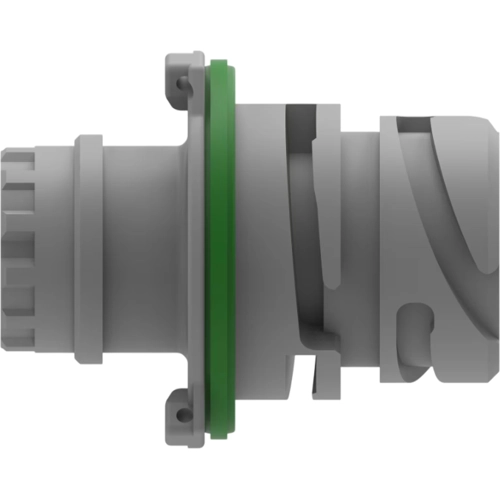

Plug, unequipped, 4 pole, straight, 2 rows, gray, 2-967402-1
Order No.: 36P4004
EAN: 4099889904376
MPN:
2-967402-1
Unit Price (€ / pc.)
3.9151 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
3.6295 €
25 pcs.
3.3915 €
50 pcs.
3.0821 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 2-967402-1, AMP
Row-to-row spacing: 7 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 4, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Cable exit angle: 180°, Body material: PBT GF, Primary product color: gray, Connector code: 2, Mating pin diameter: 2.5 mm, Mounting feature: without, Centerline (pitch): 7 mm, Height: 28 mm, Length: 44 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Degree of protection: IP69K, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 450, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 12 V | |
| Pin number | 4 pole | |
| Version | straight | |
| Colour | gray | |
| Grid | 7 mm | |
| Type of locking | Yes | |
| Contact type | plug | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
