2-967325-3 | AMP

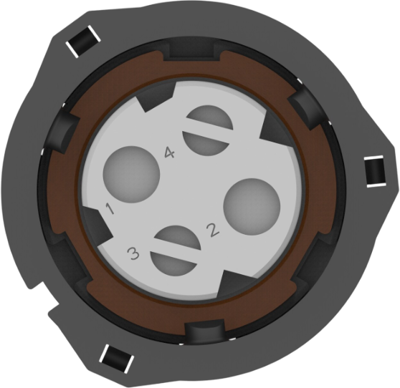

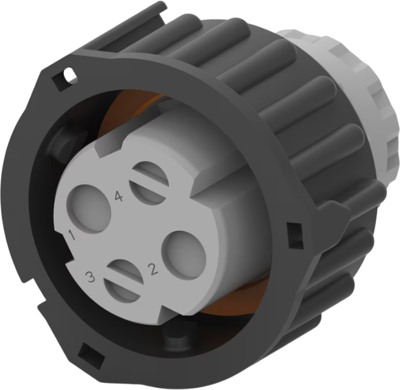

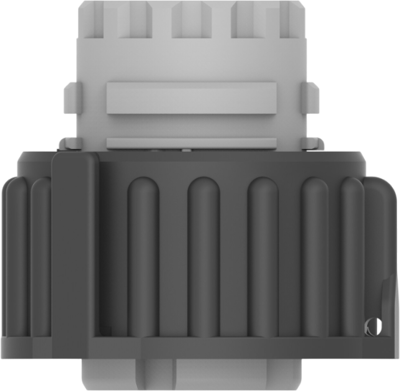

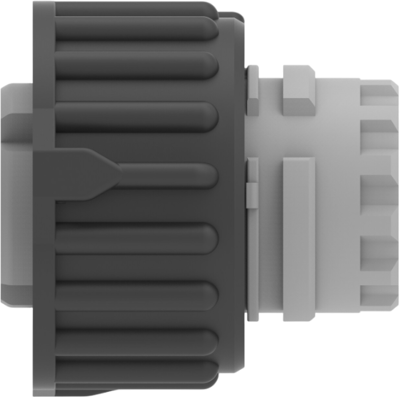

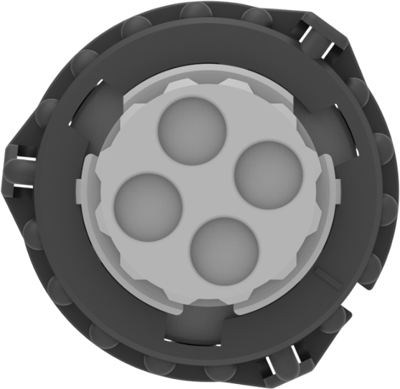

Socket, unequipped, 4 pole, straight, 4 rows, gray, 2-967325-3
Order No.: 36P3990
EAN: 4099889904239
MPN:
2-967325-3
Unit Price (€ / pc.)
5.2717 € *
Available in 5 Days: 254 pcs. - if ordered today
Total Price:
5.27 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2717 €
10 pcs.
4.8671 €
50 pcs.
4.3673 €
100 pcs.
3.9270 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 2-967325-3, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Blank cavity position: 3, 4, Number of positions: 4, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: other, Primary product color: gray, Connector code: 2, Mating pin diameter: 2.5 mm, Strain relief: no, Centerline (pitch): 7 mm, Product height: 32.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Version | straight | |
| Colour | gray | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| Pin number | 4 pole | |
| Connection | crimp connection | |
| Grid | 7 mm | |
| Number of rows | 4 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85472000 |
| Country of origin | US |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
