2-963226-1 | AMP

Socket, unequipped, 42 pole, straight, 3 rows, gray, 2-963226-1

Order No.: 36P2980
EAN: 4099889899917
MPN:
2-963226-1

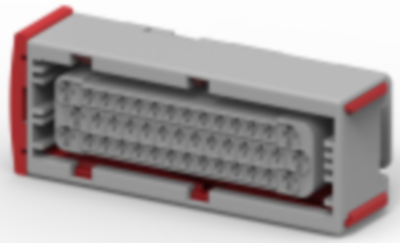

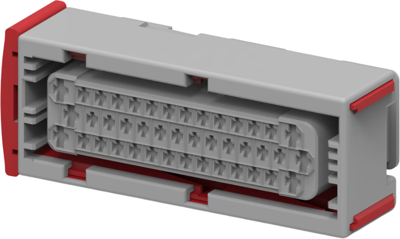

2-963226-1 AMP Automotive Power Connectors Image 1

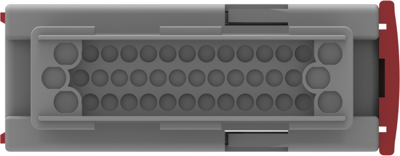

2-963226-1 AMP Automotive Power Connectors Image 2

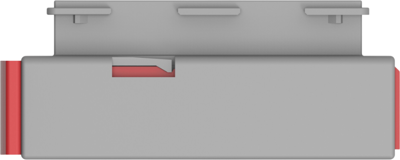

2-963226-1 AMP Automotive Power Connectors Image 3

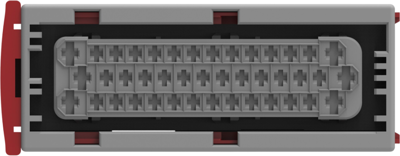

2-963226-1 AMP Automotive Power Connectors Image 4

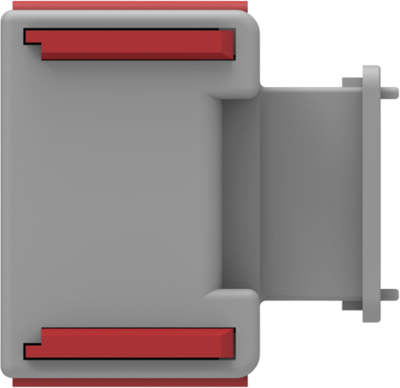

2-963226-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.2963 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
642.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
195 pcs.
3.2963 €

Housing terminals, 2-963226-1, AMP

Housing for female terminals, Wire-to-wire, 42 Position, 4 mm Centerline, Gray, Wire & cable, Power, Timer connector system

Technical specifications
Version straight
Colour gray
Type of locking Yes
Pin number 42 pole
Connection crimp connection
Grid 4 mm
Number of rows 3
Rated current 30 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
