2-963211-1 | AMP

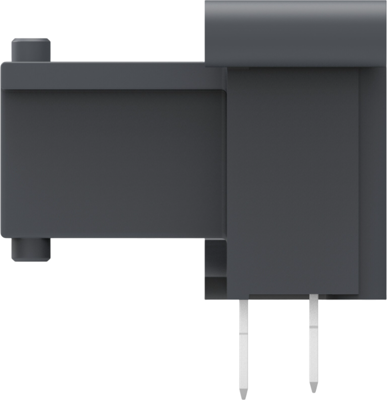

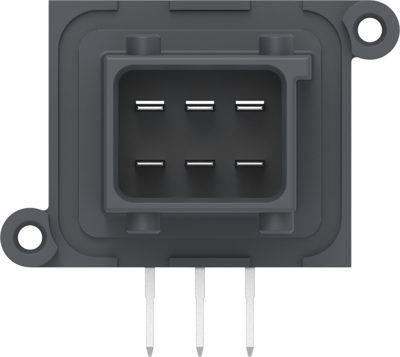

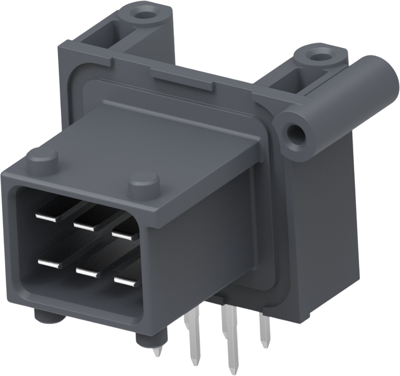

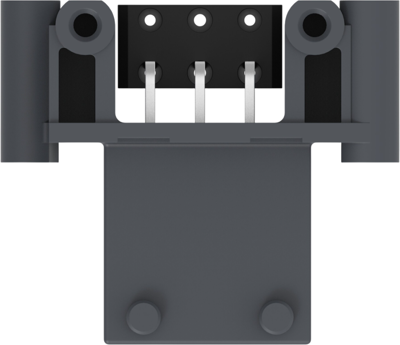

Plug, 6 pole, angled, 2 rows, gray, 2-963211-1
Order No.: 36P3241
EAN: 4099889902020
MPN:
2-963211-1
Unit Price (€ / pc.)
6.2951 € *
Available in 5 Days: 1,079 pcs. - if ordered today
Total Price:
6.30 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2951 €
10 pcs.
5.8429 €
25 pcs.
5.4502 €
50 pcs.
4.9623 €
*incl. VAT plus shipping costs
Subject to prior sale
Hybrid header, 2-963211-1, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of positions: 6, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: gray, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Length: 34.6 mm, Circuit application: signal, Packaging quantity: 400
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | plug | |
| Connection | solder connection | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 6 pole | |
| Colour | gray | |
| Version | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
