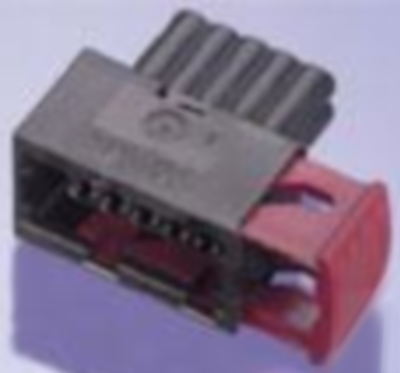

2-963210-1 | AMP
Socket, unequipped, 2 pole, straight, 1 row, gray, 2-963210-1
Order No.: 36P2943
EAN: 4099889899603
MPN:
2-963210-1
Unit Price (€ / pc.)
1.6779 € *
Standard delivery time from the manufacturer is: 11 Weeks
Socket housing, 2-963210-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Body material: PBT GF, Primary product color: gray, Mating tab width: 2.8 mm, Terminal position assurance: yes, Polarized, Centerline (pitch): 5 mm, Height: 37.8 mm, Length: 41.4 mm, Circuit application: signal, Packaging method: box, Packaging quantity: 1000, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 12 V | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 2 pole | |
| Additional parts | unequipped | |
| Colour | gray | |
| Version | straight | |
| Rated current | 30 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
