2-963207-1 | AMP

Socket, unequipped, 4 pole, straight, 1 row, gray, 2-963207-1

Order No.: 36P2987
EAN: 4099889899979
MPN:
2-963207-1

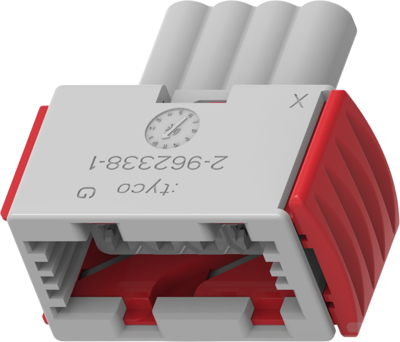

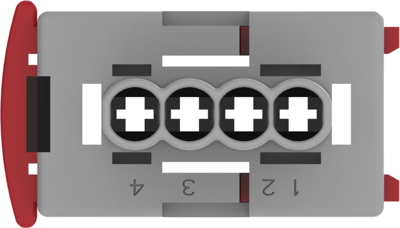

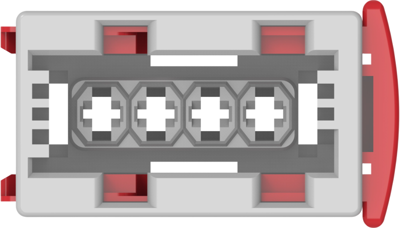

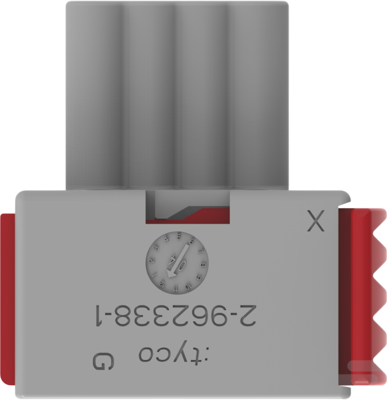

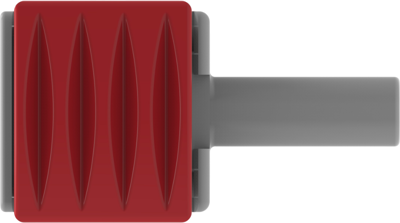

2-963207-1 AMP Automotive Power Connectors Image 1
2-963207-1 AMP Automotive Power Connectors Image 2
2-963207-1 AMP Automotive Power Connectors Image 3
2-963207-1 AMP Automotive Power Connectors Image 4
2-963207-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.5823 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5823 €
10 pcs.
2.3681 €
50 pcs.
2.1301 €
100 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 2-963207-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 4, Number of rows: 1, Body material: PBT GF, Primary product color: gray, Connector code: B1, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 21 mm, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Number of rows 1
Type of locking Yes
Colour gray
Connection crimp connection
Rated voltage 36 V
Contact type socket
Grid 5 mm
Rated current 30 A
Pin number 4 pole
Version straight
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
