2-962352-1 | AMP

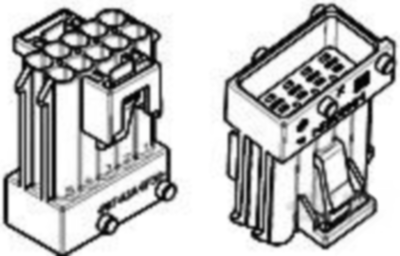

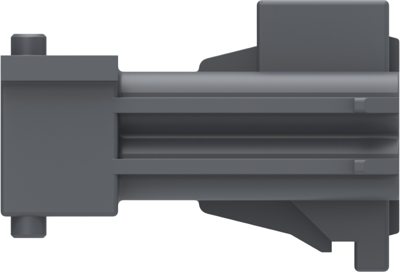

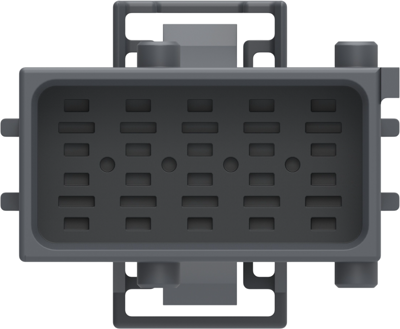

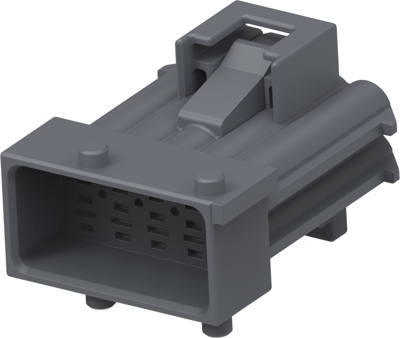

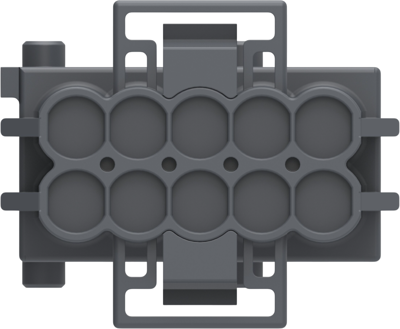

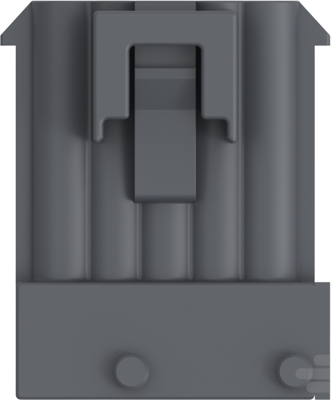

Plug, unequipped, 10 pole, straight, 2 rows, gray, 2-962352-1
Order No.: 36P2918
EAN: 4099889899436
MPN:
2-962352-1
Unit Price (€ / pc.)
1.2019 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Plug housing, 2-962352-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 10, Number of rows: 2, Body material: PBT GF, Primary product color: gray, Mating tab width: 2.8 mm, Strain relief: no, Centerline (pitch): 5 mm, Row-to-row spacing: 6 mm, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | gray | |
| Contact type | plug | |
| Rated current | 30 A | |
| Pin number | 10 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
