2-962349-1 | AMP
Plug, unequipped, 6 pole, straight, 2 rows, gray, 2-962349-1
Order No.: 36P3005
EAN: 4099889900118
MPN:
2-962349-1
Unit Price (€ / pc.)
1.6898 € *
Available in 5 Days: 1,210 pcs. - if ordered today
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5708 €
25 pcs.
1.4637 €
50 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale

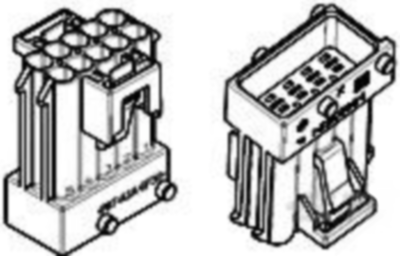

Plug housing, 2-962349-1, AMP
Row-to-row spacing: 6 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 6, Number of rows: 2, Body material: PBT GF, Primary product color: gray, Mating tab width: 2.8 mm, Terminal position assurance: yes, Centerline (pitch): 5 mm, Height: 38 mm, Length: 20.2 mm, Width: 26.6 mm, Circuit application: signal, Packaging method: carton, Packaging quantity: 1500, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Number of rows | 2 | |
| Additional parts | unequipped | |
| Pin number | 6 pole | |
| Version | straight | |
| Grid | 5 mm | |
| Colour | gray | |
| Rated current | 30 A | |
| Contact type | plug | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
