2-1447232-6 | AMP

Plug, 44 pole, straight, 2 rows, black, 2-1447232-6

Order No.: 36P2678
EAN: 4099889897951
MPN:
2-1447232-6
Series: SUPERSEAL 1.0

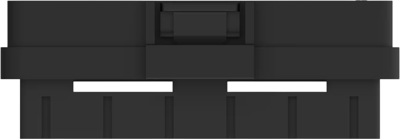

2-1447232-6 AMP Automotive Power Connectors Image 1

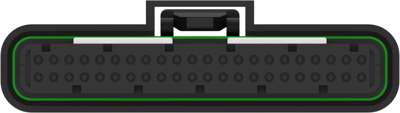

2-1447232-6 AMP Automotive Power Connectors Image 2

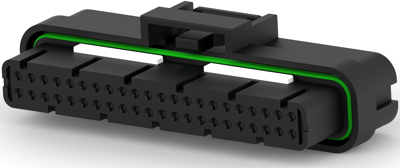

2-1447232-6 AMP Automotive Power Connectors Image 3

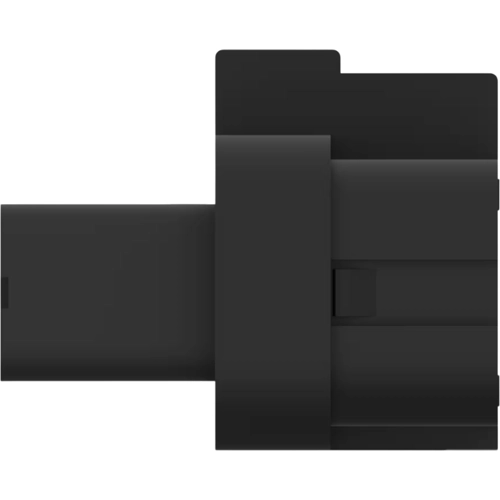

2-1447232-6 AMP Automotive Power Connectors Image 4

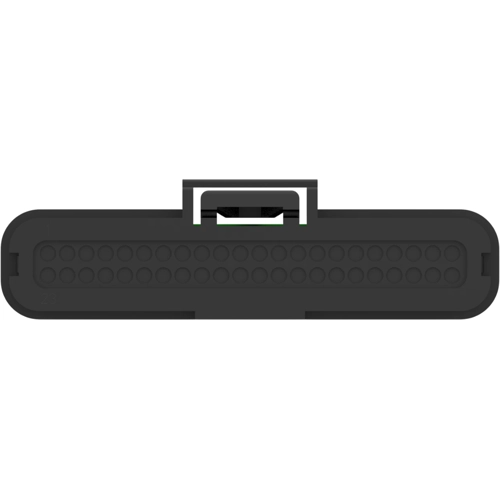

2-1447232-6 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
18.4569 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
2,657.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
144 pcs.
18.4569 €

Socket housing, 2-1447232-6, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Primary locking feature: Contact Retainer, Connector & contact terminates to: printed circuit board, Number of positions: 44, Number of rows: 2, Nominal voltage architecture: 250 V, Primary product color: black, Mating pin diameter: 1 mm, Contact Current Rating (Max): 7 A, Centerline (pitch): 3.5 mm, Row-to-row spacing: 4 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Connector position assurance capable: no

Technical specifications
Filter Property Value
Version straight
Colour black
Type of locking Yes
contact surface gold-plated
Pin number 44 pole
Connection solder connection
Grid 3.5 mm
Number of rows 2
Rated current 7 A
Contact type plug
Logistics
Property Value
Customs tariff number 85472000
Country of origin SG
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
