184034-1 | AMP

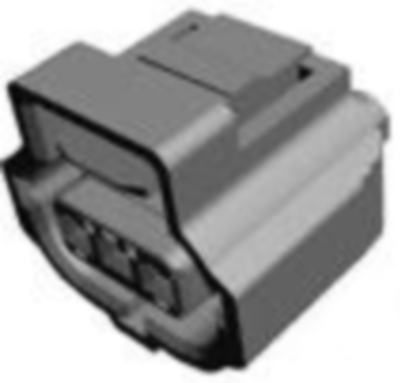

Socket, unequipped, 3 pole, straight, 1 row, black, 184034-1
Order No.: 36P2535
EAN: 4099889897869
MPN:
184034-1
Unit Price (€ / pc.)
1.2019 € *
Available in 5 Days: 1,300 pcs. - if ordered today
Socket housing, 184034-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 3, Number of rows: 1, Operating voltage: 125 VAC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, Body material: PBT GF, Primary product color: black, Strain relief: no, Centerline (pitch): 5 mm, Product height: 27.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Rated voltage | 125 V | |
| Version | straight | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Pin number | 3 pole | |
| Grid | 5 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | black | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IL |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
