179631-1 | AMP

Socket, unequipped, 16 pole, straight, 2 rows, natural, 179631-1

Order No.: 36P2012
EAN: 4099889897241
MPN:
179631-1
179631-1 AMP Automotive Power Connectors Image 1

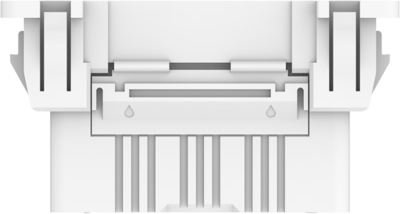

179631-1 AMP Automotive Power Connectors Image 2

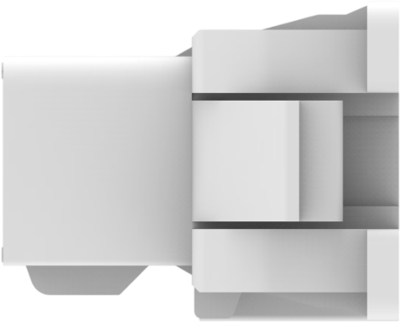

179631-1 AMP Automotive Power Connectors Image 3

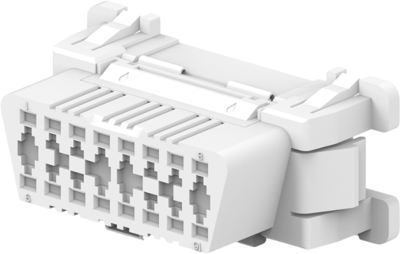

179631-1 AMP Automotive Power Connectors Image 4

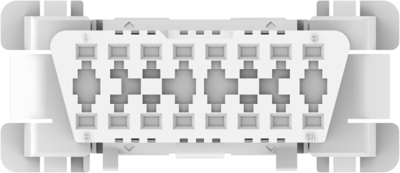

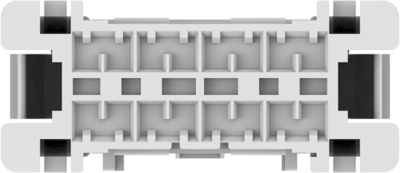

179631-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
1.3209 €
50 pcs.
1.1900 €
100 pcs.
1.0710 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 179631-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 16, Number of rows: 2, Body material: PBT, Primary product color: natural, Mating tab width: 1.5 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 8.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, Packaging method: bag, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking No
Rated voltage 30 V
Pin number 16 pole
Connection crimp connection
Grid 2.2 mm
Number of rows 2
Rated current 10 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
