179057-6 | AMP

Socket, unequipped, 20 pole, straight, 2 rows, gray, 179057-6

Order No.: 36P1457
EAN: 4099889894974
MPN:
179057-6
Series: Multilock
179057-6 AMP Automotive Power Connectors

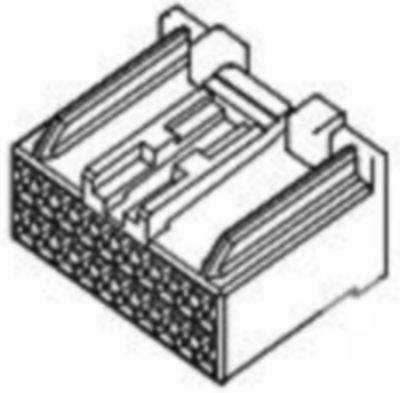

Image may differ
Unit Price (€ / pc.)
0.9520 € *
Available in 5 Days: 1,280 pcs. - if ordered today
Total Price:
0.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.9520 €

Socket housing, 179057-6, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 20, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: gray, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.5 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Colour gray
Type of locking Yes
Grid 2.5 mm
Pin number 20 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Rated voltage 12 V
Number of rows 2
Logistics
Property Value
Country of origin CN
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
